Connectomics
[1]:
# Install all used libraries
!pip install -r ../../../requirements.txt --quiet
!pip install ../../../ --quiet
[2]:
# Import libs and initialise API objects
from vfb_connect import vfb
import pandas as pd
import pymaid
import navis
navis.set_pbars(jupyter=False)
pymaid.set_pbars(jupyter=False)
# Connect to VFB's CATMAID server hosting the FAFB data
rm = pymaid.connect_catmaid(server="https://fafb.catmaid.virtualflybrain.org/", api_token=None, max_threads=10)
# Test call to see if connection works
print(f'Server is running CATMAID version {rm.catmaid_version}')
Welcome to the Virtual Fly Brain API
See the documentation at: https://virtualflybrain.org/docs/tutorials/apis/
Establishing connections to https://VirtualFlyBrain.org services...
Session Established!
Type vfb. and press tab to see available queries. You can run help against any query e.g. help(vfb.terms)
INFO : Global CATMAID instance set. Caching is ON. (pymaid)
Server is running CATMAID version 2020.02.15-102-gce1dee4
VFB provides a simple methods for exploring connectomics data
get_connected_neurons_by_type allows queries for connections between defined upstream and downstream neuron types/classes. This supports a level of abstraction not available without VFB, where grouping of neurons by higher level classifications is limited to extraction of classification from standardised names. The following examples take advantage of the abstract clasifications on VFB to explore direct synaptic connections.
[3]:
vfb.get_terms_by_xref(['Trh-F-500041'], db='FlyCircuit')
[3]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Trh-F-500041 | VFB_00014110 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult neuron, expression pattern fragment] | [FBbt_00047095, VFBext_0000004] | [FlyCircuit] | [Trh-F-500041] | [FlyCircuit:Trh-F-500041] | [adult brain template JFRC2, JRC2018Unisex] | [Chiang2010] | [] |
[4]:
neurons_in_DA3 = vfb.get_instances("'neuron' that 'overlaps' some 'antennal lobe glomerulus DA3'", return_dataframe=True, limit=50)
neurons_in_DA3
Limiting to 50 terms out of 200
[4]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | FlyWire:720575940629461442 | SPS.GNG.2 | VFB_fw007255 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-efferent, superc... | [descending neuron of the anterior ventral bra... | [FBbt_00047586] | [fw] | [720575940629461442] | [fw:720575940629461442, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 1 | FlyWire:720575940621209513 | AL.2610 | VFB_fw042719 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [fw] | [720575940621209513] | [fw:720575940621209513, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 2 | FlyWire:720575940621265249 | NO_CONS.1112 | VFB_fw044209 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940621265249] | [fw:720575940621265249, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 3 | FlyWire:720575940628683002 | AL.2425 | VFB_fw047713 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [fw] | [720575940628683002] | [fw:720575940628683002, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 4 | FlyWire:720575940627185896 | NO_CONS.1800 | VFB_fw047933 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [fw] | [720575940627185896] | [fw:720575940627185896, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 5 | CSD(5HT1)(AVM03)_L (FlyEM-HB:759810119) | CSD(5HT1)(AVM03)_L | VFB_jrchjtd6 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult CSD interneuron] | [FBbt_00007405] | [hb] | [759810119] | [neuronbridge:hemibrain:759810119, hb:759810119] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 6 | DA3_adPN_R (FlyEM-HB:1703683361) | DA3_adPN_R | VFB_jrchjtdn | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA3 adPN] | [FBbt_00100384] | [hb] | [1703683361] | [neuronbridge:hemibrain:1703683361, hb:1703683... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 7 | DA4m_adPN_R (FlyEM-HB:574037266) | DA4m_adPN_R | VFB_jrchjtdq | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA4m adPN] | [FBbt_00047714] | [hb] | [574037266] | [neuronbridge:hemibrain:574037266, hb:574037266] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 8 | DA3_adPN_R (FlyEM-HB:666135689) | DA3_adPN_R | VFB_jrchjtdo | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA3 adPN] | [FBbt_00100384] | [hb] | [666135689] | [neuronbridge:hemibrain:666135689, hb:666135689] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 9 | DL4_adPN_R (FlyEM-HB:1670934213) | DL4_adPN_R | VFB_jrchjteh | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DL4 adPN] | [FBbt_00100382] | [hb] | [1670934213] | [neuronbridge:hemibrain:1670934213, hb:1670934... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 10 | ORN_DA3_R (FlyEM-HB:1703683060) | ORN_DA3_R | VFB_jrchk183 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Orphan, cropped-None | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [hb] | [1703683060] | [hb:1703683060, neuronbridge:hemibrain:1703683... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 11 | ORN_DA3 (FlyEM-HB:1670972802) | ORN_DA3 | VFB_jrchk184 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [hb] | [1670972802] | [neuronbridge:hemibrain:1670972802, hb:1670972... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 12 | ORN_DA3 (FlyEM-HB:1703151910) | ORN_DA3 | VFB_jrchk185 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult cholinergic neuron, adult olfactory rec... | [FBbt_00058205, FBbt_00067033] | [hb] | [1703151910] | [neuronbridge:hemibrain:1703151910, hb:1703151... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 13 | ORN_DA3 (FlyEM-HB:1703683340) | ORN_DA3 | VFB_jrchk186 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [hb] | [1703683340] | [hb:1703683340, neuronbridge:hemibrain:1703683... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 14 | ORN_DA3 (FlyEM-HB:1733850183) | ORN_DA3 | VFB_jrchk182 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [hb] | [1733850183] | [hb:1733850183, neuronbridge:hemibrain:1733850... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 15 | ORN_DA3 (FlyEM-HB:1702811119) | ORN_DA3 | VFB_jrchk181 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [hb] | [1702811119] | [hb:1702811119, neuronbridge:hemibrain:1702811... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 16 | ORN_DA3 (FlyEM-HB:1703342127) | ORN_DA3 | VFB_jrchk180 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [hb] | [1703342127] | [hb:1703342127, neuronbridge:hemibrain:1703342... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 17 | ORN_DL3_L (FlyEM-HB:1606205114) | ORN_DL3_L | VFB_jrchk1hb | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or65] | [FBbt_00067011] | [hb] | [1606205114] | [hb:1606205114, neuronbridge:hemibrain:1606205... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 18 | ORN_DL5_R (FlyEM-HB:1639925326) | ORN_DL5_R | VFB_jrchk1lb | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult cholinergic neuron, adult olfactory rec... | [FBbt_00058205, FBbt_00067005] | [hb] | [1639925326] | [hb:1639925326, neuronbridge:hemibrain:1639925... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 19 | ORN_DL5_L (FlyEM-HB:1640050851) | ORN_DL5_L | VFB_jrchk1lh | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult cholinergic neuron, adult olfactory rec... | [FBbt_00058205, FBbt_00067005] | [hb] | [1640050851] | [neuronbridge:hemibrain:1640050851, hb:1640050... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 20 | ORN_DL5_L (FlyEM-HB:1669933011) | ORN_DL5_L | VFB_jrchk1li | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult cholinergic neuron, adult olfactory rec... | [FBbt_00058205, FBbt_00067005] | [hb] | [1669933011] | [hb:1669933011, neuronbridge:hemibrain:1669933... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 21 | ORN_VA6 (FlyEM-HB:1921989317) | ORN_VA6 | VFB_jrchk2ao | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Leaves, cropped-True | [adult olfactory receptor neuron Or82a] | [FBbt_00067044] | [hb] | [1921989317] | [neuronbridge:hemibrain:1921989317, hb:1921989... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 22 | FlyWire:720575940639028312 | AL.2664 | VFB_fw045784 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940639028312] | [neuronbridge:flywire_fafb:720575940639028312,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 23 | FlyWire:720575940625187390 | AL.2709 | VFB_fw045776 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940625187390] | [fw:720575940625187390, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 24 | FlyWire:720575940622565514 | NO_CONS.1277 | VFB_fw045774 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940622565514] | [fw:720575940622565514, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 25 | FlyWire:720575940629782748 | AL.2689 | VFB_fw045781 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940629782748] | [fw:720575940629782748, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 26 | FlyWire:720575940626859797 | NO_CONS.1762 | VFB_fw045783 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940626859797] | [neuronbridge:flywire_fafb:720575940626859797,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 27 | FlyWire:720575940623031223 | AL.2603 | VFB_fw045778 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940623031223] | [neuronbridge:flywire_fafb:720575940623031223,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 28 | FlyWire:720575940611559653 | NO_CONS.268 | VFB_fw045788 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940611559653] | [fw:720575940611559653, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 29 | FlyWire:720575940630246778 | NO_CONS.2170 | VFB_fw045780 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [fw] | [720575940630246778] | [fw:720575940630246778, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 30 | FlyWire:720575940619976686 | AL.2620 | VFB_fw045779 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940619976686] | [neuronbridge:flywire_fafb:720575940619976686,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 31 | FlyWire:720575940624163854 | AL.2447 | VFB_fw045777 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940624163854] | [fw:720575940624163854, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 32 | FlyWire:720575940632297263 | AL.2547 | VFB_fw045785 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940632297263] | [neuronbridge:flywire_fafb:720575940632297263,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 33 | FlyWire:720575940631315503 | AL.2683 | VFB_fw045787 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940631315503] | [fw:720575940631315503, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 34 | FlyWire:720575940625460784 | NO_CONS.1602 | VFB_fw045789 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940625460784] | [neuronbridge:flywire_fafb:720575940625460784,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 35 | FlyWire:720575940622098019 | NO_CONS.1215 | VFB_fw045786 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940622098019] | [neuronbridge:flywire_fafb:720575940622098019,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 36 | FlyWire:720575940603828704 | AL.2761 | VFB_fw045775 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940603828704] | [neuronbridge:flywire_fafb:720575940603828704,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 37 | FlyWire:720575940612417905 | AL.2751 | VFB_fw045782 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-afferent, superc... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940612417905] | [fw:720575940612417905, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 38 | v2LN35_R (FlyEM-HB:1733056086) | v2LN35_R | VFB_jrchk8ew | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [cholinergic local interneuron of the adult an... | [FBbt_00007403, FBbt_20003766] | [hb] | [1733056086] | [neuronbridge:hemibrain:1733056086, hb:1733056... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 39 | FlyWire:720575940626873488 | AL.2617 | VFB_fw050130 | [Entity, Individual, VFB, Neuron, Adult, Anato... | status-outlier_bioFlyWire classification: flo... | [adult olfactory receptor neuron Or23a] | [FBbt_00067033] | [fw] | [720575940626873488] | [fw:720575940626873488, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 40 | FlyWire:720575940626399550 | AL.2706 | VFB_fw050126 | [Entity, Individual, VFB, Neuron, Adult, Anato... | status-outlier_segFlyWire classification: flo... | [adult serotonergic neuron, adult olfactory re... | [FBbt_00049526, FBbt_00067033] | [fw] | [720575940626399550] | [neuronbridge:flywire_fafb:720575940626399550,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 41 | lLN12a_R (FlyEM-HB:1826445251) | lLN12a_R | VFB_jrchk89g | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [cholinergic local interneuron of the adult an... | [FBbt_00007403, FBbt_20003746] | [hb] | [1826445251] | [hb:1826445251, neuronbridge:hemibrain:1826445... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 42 | lLN10_R (FlyEM-HB:1825789179) | lLN10_R | VFB_jrchk89b | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [GABAergic local interneuron of the adult ante... | [FBbt_00007402, FBbt_20003744] | [hb] | [1825789179] | [hb:1825789179, neuronbridge:hemibrain:1825789... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 43 | lLN16b_R (FlyEM-HB:1887168462) | lLN16b_R | VFB_jrchk89w | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe local neuron lLN16B] | [FBbt_20003752] | [hb] | [1887168462] | [neuronbridge:hemibrain:1887168462, hb:1887168... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 44 | lLN11_R (FlyEM-HB:1670278227) | lLN11_R | VFB_jrchk89e | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe local neuron lLN11] | [FBbt_20003745] | [hb] | [1670278227] | [hb:1670278227, neuronbridge:hemibrain:1670278... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 45 | lLN16a_R (FlyEM-HB:1702318692) | lLN16a_R | VFB_jrchk89t | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe local neuron lLN16A] | [FBbt_20003751] | [hb] | [1702318692] | [neuronbridge:hemibrain:1702318692, hb:1702318... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 46 | il3LN6_R (FlyEM-HB:5813018460) | il3LN6_R | VFB_jrchk88v | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult serotonergic SE neuron, antennal lobe l... | [FBbt_00047319, FBbt_00047710] | [hb] | [5813018460] | [neuronbridge:hemibrain:5813018460, hb:5813018... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 47 | lLN11_R (FlyEM-HB:2040301572) | lLN11_R | VFB_jrchk89d | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [cholinergic local interneuron of the adult an... | [FBbt_00007403, FBbt_20003745] | [hb] | [2040301572] | [neuronbridge:hemibrain:2040301572, hb:2040301... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 48 | FlyWire:720575940649133945 | SLP.LH.8 | VFB_fw035291 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA3 adPN] | [FBbt_00100384] | [fw] | [720575940649133945] | [neuronbridge:flywire_fafb:720575940649133945,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 49 | FlyWire:720575940625924618 | LH.158 | VFB_fw035979 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA3 adPN] | [FBbt_00100384] | [fw] | [720575940625924618] | [neuronbridge:flywire_fafb:720575940625924618,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
[5]:
# Find all GABA-regic inputs onto descending neurons
vfb.get_connected_neurons_by_type(upstream_type='GABAergic neuron',
downstream_type='adult descending neuron',
weight=10).sort_values('weight', ascending=False, ignore_index=True)
[5]:
| upstream_class | upstream_class_id | upstream_neuron_id | upstream_neuron_name | weight | downstream_neuron_id | downstream_neuron_name | downstream_class | downstream_class_id | up_data_source | up_accession | down_source | down_accession | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | adult superior medial protocerebrum neuron 594 | FBbt_20003456 | VFB_jrchk79q | SMP594(SCB017)_R (FlyEM-HB:976934253) | 492 | VFB_jrchk70f | SMP454_R (FlyEM-HB:326253554) | adult superior medial protocerebrum neuron 454 | FBbt_20003316 | neuprint_JRC_Hemibrain_1point2point1 | 976934253 | neuprint_JRC_Hemibrain_1point2point1 | 326253554 |
| 1 | adult superior medial protocerebrum neuron 594 | FBbt_20003456 | VFB_jrchk79q | SMP594(SCB017)_R (FlyEM-HB:976934253) | 393 | VFB_jrchjsri | CL138_R (FlyEM-HB:707190304) | adult clamp neuron 138 | FBbt_20000843 | neuprint_JRC_Hemibrain_1point2point1 | 976934253 | neuprint_JRC_Hemibrain_1point2point1 | 707190304 |
| 2 | adult anterior ventrolateral protocerebrum neu... | FBbt_20000189 | VFB_jrchjrof | AVLP080_R (FlyEM-HB:5813027276) | 373 | VFB_jrchk4wd | PVLP136_R (FlyEM-HB:5813057178) | adult posterior ventrolateral protocerebrum ne... | FBbt_20002194 | neuprint_JRC_Hemibrain_1point2point1 | 5813027276 | neuprint_JRC_Hemibrain_1point2point1 | 5813057178 |
| 3 | adult anterior optic tubercle neuron 019 | FBbt_20000018 | VFB_jrchjrek | AOTU019(ADM10)_L (FlyEM-HB:1605518663) | 362 | VFB_jrchk47t | PS017_R (FlyEM-HB:5813069484) | adult posterior slope neuron 017 | FBbt_20001772 | neuprint_JRC_Hemibrain_1point2point1 | 1605518663 | neuprint_JRC_Hemibrain_1point2point1 | 5813069484 |
| 4 | adult anterior ventrolateral protocerebrum neu... | FBbt_20000185 | VFB_jrchjrob | AVLP076_R (FlyEM-HB:1135441187) | 349 | VFB_jrchk4wd | PVLP136_R (FlyEM-HB:5813057178) | adult posterior ventrolateral protocerebrum ne... | FBbt_20002194 | neuprint_JRC_Hemibrain_1point2point1 | 1135441187 | neuprint_JRC_Hemibrain_1point2point1 | 5813057178 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 13070 | adult fruitless vPR9 neuron | FBbt_00111145 | VFB_jrcv0bev | IN00A026_T1_M (MANC:14791) | 10 | VFB_jrcv0abv | TBD (MANC:13387) | adult DNxl103 neuron | FBbt_20008324 | neuprint_JRC_Manc_1_2_1 | 14791 | neuprint_JRC_Manc_1_2_1 | 13387 |
| 13071 | adult fruitless vPR9 neuron | FBbt_00111145 | VFB_jrcv0bev | IN00A026_T1_M (MANC:14791) | 10 | VFB_jrcv0abv | TBD (MANC:13387) | adult DNxl103 neuron | FBbt_20008324 | neuprint_JRC_Manc_1_2_1 | 14791 | neuprint_JRC_Manc | 13387 |
| 13072 | adult fruitless vPR9 neuron | FBbt_00111145 | VFB_jrcv0bev | IN00A026_T1_M (MANC:14791) | 10 | VFB_jrcv0abv | TBD (MANC:13387) | adult DNxl103 neuron | FBbt_20008324 | neuprint_JRC_Manc | 14791 | neuprint_JRC_Manc_1_2_1 | 13387 |
| 13073 | adult fruitless vPR9 neuron | FBbt_00111145 | VFB_jrcv0bev | IN00A026_T1_M (MANC:14791) | 10 | VFB_jrcv0abv | TBD (MANC:13387) | adult DNxl103 neuron | FBbt_20008324 | neuprint_JRC_Manc | 14791 | neuprint_JRC_Manc | 13387 |
| 13074 | adult DNxn182 neuron | FBbt_20008440 | VFB_jrcv090t | TBD (MANC:11693) | 10 | VFB_jrcv097f | TBD (MANC:11931) | descending neuron of the posterior brain DNp34 | FBbt_00047667 | neuprint_JRC_Manc | 11693 | neuprint_JRC_Manc | 11931 |
13075 rows × 13 columns
[6]:
# Get connections between pacemaker neurons
clock_neuron_connectome = vfb.get_connected_neurons_by_type(upstream_type='pacemaker neuron',
downstream_type='pacemaker neuron',
weight=10).sort_values('weight', ascending=False)
clock_neuron_connectome
[6]:
| upstream_class | upstream_class_id | upstream_neuron_id | upstream_neuron_name | weight | downstream_neuron_id | downstream_neuron_name | downstream_class | downstream_class_id | up_data_source | up_accession | down_source | down_accession | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | DN1a neuron | FBbt_00007429 | VFB_jrchjtex | DN1a_R (FlyEM-HB:264083994) | 79 | VFB_jrchjzxy | LNd_R (FlyEM-HB:5813069648) | LNd neuron | FBbt_00004045 | neuprint_JRC_Hemibrain_1point2point1 | 264083994 | neuprint_JRC_Hemibrain_1point2point1 | 5813069648 |
| 29 | DN1a neuron | FBbt_00007429 | VFB_jrchjtey | DN1a_R (FlyEM-HB:5813022274) | 75 | VFB_jrchjzxy | LNd_R (FlyEM-HB:5813069648) | LNd neuron | FBbt_00004045 | neuprint_JRC_Hemibrain_1point2point1 | 5813022274 | neuprint_JRC_Hemibrain_1point2point1 | 5813069648 |
| 26 | DN1a neuron | FBbt_00007429 | VFB_00103owr | DN1a_R (JRC_OpticLobe:14636) | 67 | VFB_00103m9i | 5thsLNv_LNd6_R (JRC_OpticLobe:11901) | LN period neuron | FBbt_00004044 | neuprint_JRC_OpticLobe_v1_0_1 | 14636 | neuprint_JRC_OpticLobe_v1_0_1 | 11901 |
| 27 | DN1a neuron | FBbt_00007429 | VFB_jrchjtey | DN1a_R (FlyEM-HB:5813022274) | 63 | VFB_jrchk8e0 | 5th s-LNv (FlyEM-HB:511051477) | adult s-LNv neuron | FBbt_00007428 | neuprint_JRC_Hemibrain_1point2point1 | 5813022274 | neuprint_JRC_Hemibrain_1point2point1 | 511051477 |
| 25 | DN1a neuron | FBbt_00007429 | VFB_00103owr | DN1a_R (JRC_OpticLobe:14636) | 57 | VFB_00103m9j | 5thsLNv_LNd6_R (JRC_OpticLobe:12254) | LN period neuron | FBbt_00004044 | neuprint_JRC_OpticLobe_v1_0_1 | 14636 | neuprint_JRC_OpticLobe_v1_0_1 | 12254 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 24 | adult contralaterally-projecting DN1pD neuron | FBbt_20003399 | VFB_jrchk76k | SMP537_R (FlyEM-HB:418641700) | 10 | VFB_jrchk76n | SMP539_R (FlyEM-HB:357944930) | adult ipsilateral DN1pD neuron | FBbt_20003401 | neuprint_JRC_Hemibrain_1point2point1 | 418641700 | neuprint_JRC_Hemibrain_1point2point1 | 357944930 |
| 56 | adult LP neuron | FBbt_00007432 | VFB_jrchk08a | LPN_R (FlyEM-HB:450034902) | 10 | VFB_jrchk76e | SMP532_R (FlyEM-HB:480391822) | adult DN1pE neuron | FBbt_20003394 | neuprint_JRC_Hemibrain_1point2point1 | 450034902 | neuprint_JRC_Hemibrain_1point2point1 | 480391822 |
| 22 | adult DN1pC neuron | FBbt_20003392 | VFB_jrchk76b | SMP530_R (FlyEM-HB:5813026613) | 10 | VFB_jrchk089 | LPN_R (FlyEM-HB:480029788) | adult LP neuron | FBbt_00007432 | neuprint_JRC_Hemibrain_1point2point1 | 5813026613 | neuprint_JRC_Hemibrain_1point2point1 | 480029788 |
| 21 | adult DN1pC neuron | FBbt_20003392 | VFB_jrchk76a | SMP530_R (FlyEM-HB:389657555) | 10 | VFB_jrchk089 | LPN_R (FlyEM-HB:480029788) | adult LP neuron | FBbt_00007432 | neuprint_JRC_Hemibrain_1point2point1 | 389657555 | neuprint_JRC_Hemibrain_1point2point1 | 480029788 |
| 50 | LNd neuron | FBbt_00004045 | VFB_jrchjzxy | LNd_R (FlyEM-HB:5813069648) | 10 | VFB_jrchjtf2 | DN1pA_R (FlyEM-HB:387944118) | ventro-contralateral-projecting DN1p neuron | FBbt_00052273 | neuprint_JRC_Hemibrain_1point2point1 | 5813069648 | neuprint_JRC_Hemibrain_1point2point1 | 387944118 |
64 rows × 13 columns
[7]:
# Get connections between visual projectsion neurons and descending neurons
visPN2DC = vfb.get_connected_neurons_by_type(upstream_type='visual projection neuron',
downstream_type='adult descending neuron',
weight=10).sort_values('weight', ascending=False)
visPN2DC
[7]:
| upstream_class | upstream_class_id | upstream_neuron_id | upstream_neuron_name | weight | downstream_neuron_id | downstream_neuron_name | downstream_class | downstream_class_id | up_data_source | up_accession | down_source | down_accession | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 310 | lobula tangential neuron LT51 | FBbt_00049861 | VFB_jrchk09j | LT51(aSP29a)_R (FlyEM-HB:1282348408) | 319 | VFB_jrchjtfr | DNb01_R (FlyEM-HB:1566597156) | descending neuron of the anterior ventral brai... | FBbt_00047582 | neuprint_JRC_Hemibrain_1point2point1 | 1282348408 | neuprint_JRC_Hemibrain_1point2point1 | 1566597156 |
| 361 | adult vest neuron 044 | FBbt_20003510 | VFB_jrchk7g6 | VES044_R (FlyEM-HB:5812979017) | 262 | VFB_jrchk7eb | VES009_R (FlyEM-HB:1140923511) | adult vest neuron 009 | FBbt_20003475 | neuprint_JRC_Hemibrain_1point2point1 | 5812979017 | neuprint_JRC_Hemibrain_1point2point1 | 1140923511 |
| 282 | lobula tangential neuron LT51 | FBbt_00049861 | VFB_jrchk09h | LT51_R (FlyEM-HB:5813069020) | 238 | VFB_jrchk7e7 | VES006_R (FlyEM-HB:642728308) | adult vest neuron 006 | FBbt_20003472 | neuprint_JRC_Hemibrain_1point2point1 | 5813069020 | neuprint_JRC_Hemibrain_1point2point1 | 642728308 |
| 260 | lobula tangential neuron | FBbt_00003859 | VFB_jrchk0bu | LT86_R (FlyEM-HB:1285849916) | 228 | VFB_jrchk7g4 | VES042_R (FlyEM-HB:1875284107) | adult vest neuron 042 | FBbt_20003508 | neuprint_JRC_Hemibrain_1point2point1 | 1285849916 | neuprint_JRC_Hemibrain_1point2point1 | 1875284107 |
| 335 | lobula tangential neuron LT51 | FBbt_00049861 | VFB_jrchk09c | LT51_R (FlyEM-HB:1444351896) | 221 | VFB_jrchjtfg | DNa03_R (FlyEM-HB:1139909038) | descending neuron of the anterior dorsal brain... | FBbt_00047574 | neuprint_JRC_Hemibrain_1point2point1 | 1444351896 | neuprint_JRC_Hemibrain_1point2point1 | 1139909038 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 339 | lobula tangential neuron LT51 | FBbt_00049861 | VFB_jrchk09c | LT51_R (FlyEM-HB:1444351896) | 10 | VFB_jrchk48y | PS039_R (FlyEM-HB:1963523237) | adult posterior slope neuron 039 | FBbt_20001794 | neuprint_JRC_Hemibrain_1point2point1 | 1444351896 | neuprint_JRC_Hemibrain_1point2point1 | 1963523237 |
| 1522 | lobula columnar neuron LC4 | FBbt_00003874 | VFB_jrchjya6 | LC4 (FlyEM-HB:1876894387) | 10 | VFB_jrchjtg6 | DNp03_R (FlyEM-HB:1565846637) | descending neuron of the posterior brain DNp03 | FBbt_00047636 | neuprint_JRC_Hemibrain_1point2point1 | 1876894387 | neuprint_JRC_Hemibrain_1point2point1 | 1565846637 |
| 1045 | lobula plate-lobula columnar neuron LPLC4 | FBbt_00111765 | VFB_jrchk07x | LPLC4 (FlyEM-HB:1626232238) | 10 | VFB_jrchk4cb | PS103_R (FlyEM-HB:5812989815) | adult posterior slope neuron 103 | FBbt_20001858 | neuprint_JRC_Hemibrain_1point2point1 | 1626232238 | neuprint_JRC_Hemibrain_1point2point1 | 5812989815 |
| 1044 | lobula plate-lobula columnar neuron LPLC4 | FBbt_00111765 | VFB_jrchk076 | LPLC4_R (FlyEM-HB:1686932677) | 10 | VFB_jrchk47r | PS015_R (FlyEM-HB:1508274398) | adult posterior slope neuron 015 | FBbt_20001770 | neuprint_JRC_Hemibrain_1point2point1 | 1686932677 | neuprint_JRC_Hemibrain_1point2point1 | 1508274398 |
| 1362 | lobula columnar neuron LC4 | FBbt_00003874 | VFB_jrchjyac | LC4 (FlyEM-HB:5813000577) | 10 | VFB_jrchk4wd | PVLP136_R (FlyEM-HB:5813057178) | adult posterior ventrolateral protocerebrum ne... | FBbt_20002194 | neuprint_JRC_Hemibrain_1point2point1 | 5813000577 | neuprint_JRC_Hemibrain_1point2point1 | 5813057178 |
1787 rows × 13 columns
[8]:

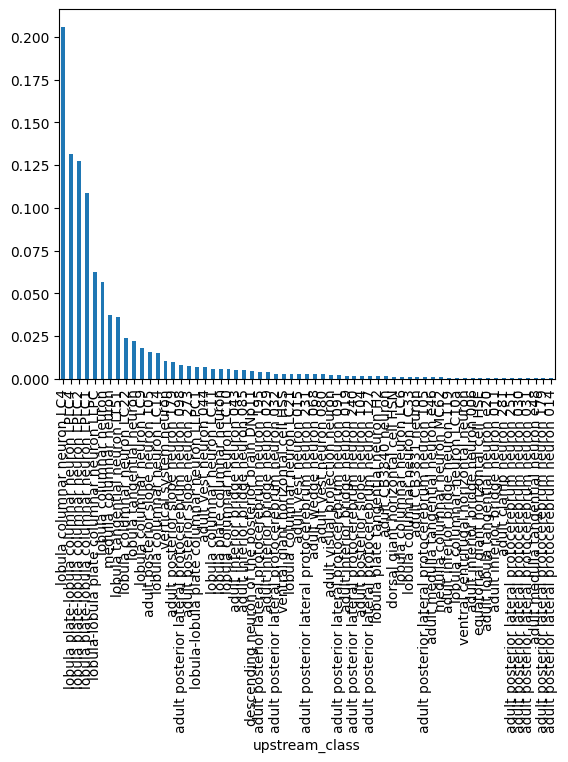

visPN2DC['upstream_class'].value_counts(normalize=True).plot(kind = 'bar') # Excercise - sum up weights for each type. Note - some types here subsume others
[8]:
<Axes: xlabel='upstream_class'>
Get neurons downstream/downstream of a specific neuron
Starting from an individual neuron, in this case an individual neuron from hemibrain, find all neurons upstream or downstream, restricting to edges >= some specified wieght (synaptic connections) and optionally limiting the output by neuron type/class.
[9]:
# Starting point - let's take one of the individual descending neurons from
# the previous exploratory queries and look for other inputs
upstream_of_DNp04 = vfb.get_neurons_upstream_of('DNp04_R (FlyEM-HB:1405231475)', weight = 20)
upstream_of_DNp04
[9]:
| query_neuron_id | query_neuron_name | weight | target_neuron_id | target_neuron_name | |
|---|---|---|---|---|---|
| 0 | VFB_jrchjy9x | LC4 (FlyEM-HB:1938544937) | 98 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 1 | VFB_jrchjy9p | LC4 (FlyEM-HB:1815070402) | 97 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 2 | VFB_jrchjyad | LC4 (FlyEM-HB:1908226457) | 93 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 3 | VFB_jrchjya0 | LC4 (FlyEM-HB:5812998136) | 92 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 4 | VFB_jrchjyah | LC4 (FlyEM-HB:1938207942) | 90 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| ... | ... | ... | ... | ... | ... |
| 82 | VFB_jrchk063 | LPLC2_R (FlyEM-HB:5813034151) | 24 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 83 | VFB_jrchk4oy | PVLP023_R (FlyEM-HB:1598296804) | 23 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 84 | VFB_jrchjrof | AVLP080_R (FlyEM-HB:5813027276) | 22 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 85 | VFB_jrchk4p4 | PVLP026_R (FlyEM-HB:1570565128) | 21 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 86 | VFB_jrchk4pd | PVLP031_R (FlyEM-HB:1630342124) | 20 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
87 rows × 5 columns
[10]:
vfb.get_TermInfo(upstream_of_DNp04['query_neuron_id'])
[10]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | AVLP076_R (FlyEM-HB:1135441187) | AVLP076_R | VFB_jrchjrob | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult anterior ventrolateral protocerebrum ne... | [FBbt_20000185] | [hb] | [1135441187] | [neuronbridge:hemibrain:1135441187, hb:1135441... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 1 | AVLP080_R (FlyEM-HB:5813027276) | AVLP080_R | VFB_jrchjrof | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult anterior ventrolateral protocerebrum ne... | [FBbt_20000189] | [hb] | [5813027276] | [neuronbridge:hemibrain:5813027276, hb:5813027... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 2 | PLP083_R (FlyEM-HB:1719643238) | PLP083_R | VFB_jrchk3wg | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult posterior later... | [FBbt_00058207, FBbt_20001583] | [hb] | [1719643238] | [neuronbridge:hemibrain:1719643238, hb:1719643... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 3 | PVLP031_R (FlyEM-HB:1630342124) | PVLP031_R | VFB_jrchk4pd | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult posterior ventr... | [FBbt_00058207, FBbt_20002089] | [hb] | [1630342124] | [hb:1630342124, neuronbridge:hemibrain:1630342... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 4 | PVLP023_R (FlyEM-HB:1598296804) | PVLP023_R | VFB_jrchk4oy | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult posterior ventr... | [FBbt_00058207, FBbt_20002081] | [hb] | [1598296804] | [hb:1598296804, neuronbridge:hemibrain:1598296... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 82 | LC4 (FlyEM-HB:1877217777) | LC4 | VFB_jrchjya1 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1877217777] | [neuronbridge:hemibrain:1877217777, hb:1877217... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 83 | LC4 (FlyEM-HB:5812998136) | LC4 | VFB_jrchjya0 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [5812998136] | [neuronbridge:hemibrain:5812998136, hb:5812998... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 84 | LC4 (FlyEM-HB:1877930505) | LC4 | VFB_jrchjya4 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1877930505] | [neuronbridge:hemibrain:1877930505, hb:1877930... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 85 | LC4(lVLPT8)_R (FlyEM-HB:1876898200) | LC4(lVLPT8)_R | VFB_jrchjya2 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1876898200] | [hb:1876898200, neuronbridge:hemibrain:1876898... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 86 | LC4 (FlyEM-HB:1876471221) | LC4 | VFB_jrchjya7 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1876471221] | [neuronbridge:hemibrain:1876471221, hb:1876471... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
87 rows × 13 columns
[11]:
vfb.get_TermInfo(upstream_of_DNp04['query_neuron_id'])
[11]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | AVLP076_R (FlyEM-HB:1135441187) | AVLP076_R | VFB_jrchjrob | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult anterior ventrolateral protocerebrum ne... | [FBbt_20000185] | [hb] | [1135441187] | [neuronbridge:hemibrain:1135441187, hb:1135441... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 1 | AVLP080_R (FlyEM-HB:5813027276) | AVLP080_R | VFB_jrchjrof | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult anterior ventrolateral protocerebrum ne... | [FBbt_20000189] | [hb] | [5813027276] | [neuronbridge:hemibrain:5813027276, hb:5813027... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 2 | PLP083_R (FlyEM-HB:1719643238) | PLP083_R | VFB_jrchk3wg | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult posterior later... | [FBbt_00058207, FBbt_20001583] | [hb] | [1719643238] | [neuronbridge:hemibrain:1719643238, hb:1719643... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 3 | PVLP031_R (FlyEM-HB:1630342124) | PVLP031_R | VFB_jrchk4pd | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult posterior ventr... | [FBbt_00058207, FBbt_20002089] | [hb] | [1630342124] | [hb:1630342124, neuronbridge:hemibrain:1630342... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 4 | PVLP023_R (FlyEM-HB:1598296804) | PVLP023_R | VFB_jrchk4oy | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult posterior ventr... | [FBbt_00058207, FBbt_20002081] | [hb] | [1598296804] | [hb:1598296804, neuronbridge:hemibrain:1598296... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 82 | LC4 (FlyEM-HB:1877217777) | LC4 | VFB_jrchjya1 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1877217777] | [neuronbridge:hemibrain:1877217777, hb:1877217... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 83 | LC4 (FlyEM-HB:5812998136) | LC4 | VFB_jrchjya0 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [5812998136] | [neuronbridge:hemibrain:5812998136, hb:5812998... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 84 | LC4 (FlyEM-HB:1877930505) | LC4 | VFB_jrchjya4 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1877930505] | [neuronbridge:hemibrain:1877930505, hb:1877930... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 85 | LC4(lVLPT8)_R (FlyEM-HB:1876898200) | LC4(lVLPT8)_R | VFB_jrchjya2 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1876898200] | [hb:1876898200, neuronbridge:hemibrain:1876898... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 86 | LC4 (FlyEM-HB:1876471221) | LC4 | VFB_jrchjya7 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [lobula columnar neuron LC4] | [FBbt_00003874] | [hb] | [1876471221] | [neuronbridge:hemibrain:1876471221, hb:1876471... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
87 rows × 13 columns
Let’s try a similar query from one of the LC4 neurons to see what other descending neuron types are downstream of it.
[12]:
vfb.get_neurons_downstream_of('LC4 (FlyEM-HB:1249932198)', classification="'adult descending neuron'", weight = 10)
[12]:
| query_neuron_id | query_neuron_name | weight | target_neuron_id | target_neuron_name | |
|---|---|---|---|---|---|
| 0 | VFB_jrchjy8y | LC4 (FlyEM-HB:1249932198) | 78 | VFB_jrchjtg7 | DNp04_R (FlyEM-HB:1405231475) |
| 1 | VFB_jrchjy8y | LC4 (FlyEM-HB:1249932198) | 65 | VFB_jrchjtgf | DNp11_R (FlyEM-HB:1281324958) |
| 2 | VFB_jrchjy8y | LC4 (FlyEM-HB:1249932198) | 30 | VFB_jrchjup1 | Giant Fiber_R (FlyEM-HB:2307027729) |
| 3 | VFB_jrchjy8y | LC4 (FlyEM-HB:1249932198) | 11 | VFB_jrchjtg6 | DNp03_R (FlyEM-HB:1565846637) |
More sophisticated connectomics queries require direct queries of connectomics DB APIs
CATMAID connectivity queries
Broadly speaking, using pymaid to query CATMAID servers lets you fetch connectivity data as either lists of up- and downstream partners or as whole adjacency matrices.
These examples use the VFB FAFB server.
[13]:
# Using VFB to get neurons by type
DA1 = vfb.get_instances("'adult antennal lobe projection neuron DA1'", return_dataframe=True, limit=50)
len(DA1)
DA1
Limiting to 50 terms out of 74
[13]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | FlyWire:720575940612526819 | LH.652 | VFB_fw029326 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fw] | [720575940612526819] | [neuronbridge:flywire_fafb:720575940612526819,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 1 | FlyWire:720575940612678637 | AL.LH.232 | VFB_fw029809 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fw] | [720575940612678637] | [fw:720575940612678637, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 2 | FlyWire:720575940628303607 | LH.841 | VFB_fw003885 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fw] | [720575940628303607] | [neuronbridge:flywire_fafb:720575940628303607,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 3 | Uniglomerular mALT DA1 lPN#L1 (FAFB:4207871) | VFB_0010126e | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fafb] | [4207871] | [fafb:4207871] | [JRC2018Unisex] | [TaiszGalili2022, BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 4 | Uniglomerular mALT DA1 lPN#L6 (FAFB:2381753) | VFB_0010123b | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [fafb] | [2381753] | [fafb:2381753] | [JRC2018Unisex] | [TaiszGalili2022, BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 5 | Uniglomerular mlALT DA1 vPN#R1 (FAFB:1811442) | VFB_0010121x | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 vPN] | [FBbt_00067372] | [fafb] | [1811442] | [fafb:1811442] | [JRC2018Unisex] | [BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 6 | Uniglomerular mlALT DA1 vPN#L1 (FAFB:2334841) | VFB_0010122m | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 vPN] | [FBbt_00067372] | [fafb] | [2334841] | [fafb:2334841] | [JRC2018Unisex] | [BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 7 | Uniglomerular mALT DA1 lPN#L3 (FAFB:2345089) | VFB_0010122p | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [fafb] | [2345089] | [fafb:2345089] | [JRC2018Unisex] | [TaiszGalili2022, BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 8 | Uniglomerular mALT DA1 lPN#L2 (FAFB:2319457) | VFB_0010122k | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fafb] | [2319457] | [fafb:2319457] | [JRC2018Unisex] | [BatesSchlegel2020, TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 9 | Uniglomerular mALT DA1 lPN#R2 (FAFB:57311) | VFB_00101200 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [57311] | [fafb:57311] | [JRC2018Unisex] | [BatesSchlegel2020, Zheng2018, TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 10 | Uniglomerular mALT DA1 lPN#R4 (FAFB:755022) | VFB_00101205 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [755022] | [fafb:755022] | [JRC2018Unisex] | [BatesSchlegel2020, TaiszGalili2022, Zheng2018] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 11 | Uniglomerular mALT DA1 lPN#R3 (FAFB:61221) | VFB_00101204 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [61221] | [fafb:61221] | [JRC2018Unisex] | [Zheng2018, TaiszGalili2022, Baltruschat2021, ... | [https://creativecommons.org/licenses/by-sa/4.... | |
| 12 | Uniglomerular mALT DA1 lPN#R1 (FAFB:57323) | VFB_00101201 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [57323] | [fafb:57323] | [JRC2018Unisex] | [TaiszGalili2022, Zheng2018, BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 13 | Uniglomerular mALT DA1 lPN#R8 (FAFB:57381) | VFB_00101203 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [57381] | [fafb:57381] | [JRC2018Unisex] | [BatesSchlegel2020, Zheng2018, TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 14 | Uniglomerular mALT DA1 lPN#R7 (FAFB:57353) | VFB_00101202 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [57353] | [fafb:57353] | [JRC2018Unisex] | [BatesSchlegel2020, Zheng2018, TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 15 | Multiglomerular mALT lvPN#R46 (FAFB:57179) | VFB_001011zb | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fafb] | [57179] | [fafb:57179] | [JRC2018Unisex] | [TaiszGalili2022, BatesSchlegel2020] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 16 | DA1_lPN_R (FlyEM-HB:722817260) | DA1_lPN_R | VFB_jrchjtda | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [hb] | [722817260] | [hb:722817260, neuronbridge:hemibrain:722817260] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 17 | DA1_vPN_R (FlyEM-HB:733316908) | DA1_vPN_R | VFB_jrchjtdh | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA1 vPN] | [FBbt_00067372] | [hb] | [733316908] | [hb:733316908, neuronbridge:hemibrain:733316908] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 18 | DA1_lPN_R (FlyEM-HB:754538881) | DA1_lPN_R | VFB_jrchjtdg | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [hb] | [754538881] | [hb:754538881, neuronbridge:hemibrain:754538881] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 19 | DA1_lPN_R (FlyEM-HB:5813039315) | DA1_lPN_R | VFB_jrchjtdd | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [hb] | [5813039315] | [hb:5813039315, neuronbridge:hemibrain:5813039... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 20 | DA1_lPN_R (FlyEM-HB:1765040289) | DA1_lPN_R | VFB_jrchjtdc | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [hb] | [1765040289] | [hb:1765040289, neuronbridge:hemibrain:1765040... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 21 | DA1_lPN_R (FlyEM-HB:1734350908) | DA1_lPN_R | VFB_jrchjtdb | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [hb] | [1734350908] | [neuronbridge:hemibrain:1734350908, hb:1734350... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 22 | DA1_lPN_R (FlyEM-HB:754534424) | DA1_lPN_R | VFB_jrchjtde | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [hb] | [754534424] | [hb:754534424, neuronbridge:hemibrain:754534424] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 23 | DA1_lPN_R (FlyEM-HB:1734350788) | DA1_lPN_R | VFB_jrchjtdf | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [hb] | [1734350788] | [hb:1734350788, neuronbridge:hemibrain:1734350... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 24 | M_lvPNm45_R (FlyEM-HB:792023887) | M_lvPNm45_R | VFB_jrchk0xm | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [hb] | [792023887] | [hb:792023887, neuronbridge:hemibrain:792023887] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 25 | M_lvPNm45_R (FlyEM-HB:757591093) | M_lvPNm45_R | VFB_jrchk0xl | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [hb] | [757591093] | [neuronbridge:hemibrain:757591093, hb:757591093] | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 26 | M_lvPNm45_R (FlyEM-HB:757258507) | M_lvPNm45_R | VFB_jrchk0xk | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [hb] | [757258507] | [neuronbridge:hemibrain:757258507, hb:757258507] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 27 | FlyWire:720575940621239679 | AL.MB_CA.128 | VFB_fw033192 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fw] | [720575940621239679] | [fw:720575940621239679, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 28 | FlyWire:720575940621185050 | AL.MB_CA.135 | VFB_fw033526 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [fw] | [720575940621185050] | [fw:720575940621185050, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 29 | Uniglomerular mALT DA1 lPN#R6 (FAFB:27295) | VFB_00101199 | [Entity, Individual, VFB, Neuron, Adult, Anato... | NaN | [adult antennal lobe projection neuron DA1 lPN] | [FBbt_00067363] | [fafb] | [27295] | [fafb:27295] | [JRC2018Unisex] | [BatesSchlegel2020, Zheng2018, TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 30 | FlyWire:720575940604407468 | AL.LH.66 | VFB_fw004661 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fw] | [720575940604407468] | [fw:720575940604407468, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 31 | FlyWire:720575940623543881 | AL.LH.83 | VFB_fw004891 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [fw] | [720575940623543881] | [neuronbridge:flywire_fafb:720575940623543881,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 32 | Gad1-F-200010 | VFB_00012622 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, an... | [FBbt_00048096, FBbt_00067362, FBbt_00050025, ... | [FlyCircuit] | [Gad1-F-200010] | [FlyCircuit:Gad1-F-200010] | [JRC2018Unisex, adult brain template JFRC2] | [Chiang2010] | [] | |
| 33 | VGlut-F-600326 | VFB_00012155 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, ad... | [FBbt_00048096, FBbt_00050025, FBbt_00067350, ... | [FlyCircuit] | [VGlut-F-600326] | [FlyCircuit:VGlut-F-600326] | [adult brain template JFRC2, JRC2018Unisex] | [Chiang2010] | [] | |
| 34 | VGlut-F-200574 | VFB_00006638 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, ad... | [FBbt_00048096, FBbt_00050025, FBbt_00067350, ... | [FlyCircuit] | [VGlut-F-200574] | [FlyCircuit:VGlut-F-200574] | [adult brain template JFRC2, JRC2018Unisex] | [Chiang2010] | [] | |
| 35 | VGlut-F-000655 | VFB_00006552 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, ad... | [FBbt_00048096, FBbt_00050025, FBbt_00067362, ... | [FlyCircuit] | [VGlut-F-000655] | [FlyCircuit:VGlut-F-000655] | [JRC2018Unisex, adult brain template JFRC2] | [Chiang2010] | [] | |
| 36 | FlyWire:720575940627928911 | SLP.LH.35 | VFB_fw030443 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fw] | [720575940627928911] | [fw:720575940627928911, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 37 | Gad1-F-400088 | VFB_00009611 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1 vPN... | [FBbt_00067372, VFBext_0000004] | [FlyCircuit] | [Gad1-F-400088] | [FlyCircuit:Gad1-F-400088] | [adult brain template JFRC2, JRC2018Unisex] | [Chiang2010] | [] | |
| 38 | Cha-F-500006 | VFB_00010085 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, me... | [FBbt_00048096, FBbt_00067350, FBbt_00050025, ... | [FlyCircuit] | [Cha-F-500006] | [FlyCircuit:Cha-F-500006] | [JRC2018Unisex, adult brain template JFRC2] | [Chiang2010] | [] | |
| 39 | Multiglomerular mALT lvPN#L1 (FAFB:4520197) | VFB_00102dvy | [Entity, Individual, VFB, Neuron, Adult, Anato... | Multiglomerular mALT lvPN#L1, FBbt:00049785 | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fafb] | [4520197] | [fafb:4520197] | [JRC2018Unisex] | [TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 40 | Multiglomerular mALT lvPN#L3 (FAFB:4520615) | VFB_00102dvz | [Entity, Individual, VFB, Neuron, Adult, Anato... | Multiglomerular mALT lvPN#L3, FBbt:00049785 | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fafb] | [4520615] | [fafb:4520615] | [JRC2018Unisex] | [TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 41 | Multiglomerular mALT lvPN#L2 (FAFB:7710838) | VFB_00102dw8 | [Entity, Individual, VFB, Neuron, Adult, Anato... | Multiglomerular mALT lvPN#L2, FBbt:00049785 | [adult antennal lobe projection neuron DA1 lvPN] | [FBbt_20003824] | [fafb] | [7710838] | [fafb:7710838] | [JRC2018Unisex] | [TaiszGalili2022] | [https://creativecommons.org/licenses/by-sa/4.... | |
| 42 | fru-M-200319 | VFB_00000323 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, an... | [FBbt_00048096, FBbt_00067362, FBbt_00067350, ... | [FlyCircuit] | [fru-M-200319] | [FlyCircuit:fru-M-200319] | [JRC2018Unisex, adult brain template JFRC2] | [Chiang2010] | [] | |
| 43 | Cha-F-300252 | VFB_00005625 | [Entity, Individual, VFB, Neuron, Adult, Anato... | OutAge: Adult 5~15 days | [adult antennal lobe projection neuron DA1, me... | [FBbt_00048096, FBbt_00067350, FBbt_00050025, ... | [FlyCircuit] | [Cha-F-300252] | [FlyCircuit:Cha-F-300252] | [adult brain template JFRC2, JRC2018Unisex] | [Chiang2010] | [] | |
| 44 | FlyWire:720575940619385765 | AL.MB_CA.130 | VFB_fw032945 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fw] | [720575940619385765] | [neuronbridge:flywire_fafb:720575940619385765,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 45 | FlyWire:720575940603231916 | AL.MB_CA.127 | VFB_fw035224 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fw] | [720575940603231916] | [fw:720575940603231916, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 46 | FlyWire:720575940637208718 | AL.MB_CA.108 | VFB_fw035057 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fw] | [720575940637208718] | [neuronbridge:flywire_fafb:720575940637208718,... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 47 | FlyWire:720575940646122804 | AL.LH.97 | VFB_fw034164 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 vPN] | [FBbt_00067372] | [fw] | [720575940646122804] | [fw:720575940646122804, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 48 | FlyWire:720575940623303108 | AL.LH.84 | VFB_fw034161 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult fruitless aDT-e (female) neuron, adult ... | [FBbt_00110423, FBbt_00067363] | [fw] | [720575940623303108] | [fw:720575940623303108, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
| 49 | FlyWire:720575940617229632 | AL.MB_CA.133 | VFB_fw013615 | [Entity, Individual, VFB, Neuron, Adult, Anato... | FlyWire classification: flow-intrinsic, super... | [adult antennal lobe projection neuron DA1 lPN... | [FBbt_00067363, FBbt_00110423] | [fw] | [720575940617229632] | [fw:720575940617229632, neuronbridge:flywire_f... | [JRC2018Unisex] | [Dorkenwald2023] | [https://creativecommons.org/licenses/by-nc/4.... |
[14]:
# Map neurons to CATMAID Skeleton IDs (skids)
da1_skids = vfb.vfb_id_2_xrefs(DA1['id'], db='catmaid_fafb', reverse_return=True)
da1_skids_int = [int(key.split(':')[1]) for key in da1_skids.keys()]
print(da1_skids_int)
# print is just used so we can see the list as a single line
33mWarning: The following IDs do not match DB &/or id_type constraints: {'VFB_jrchjtdh', 'VFB_00009611', 'VFB_00000323', 'VFB_fw013615', 'VFB_fw030443', 'VFB_00005625', 'VFB_fw033192', 'VFB_jrchjtdd', 'VFB_00012155', 'VFB_00010085', 'VFB_jrchjtdb', 'VFB_fw033526', 'VFB_00006552', 'VFB_jrchjtdf', 'VFB_fw004661', 'VFB_jrchjtdg', 'VFB_00012622', 'VFB_jrchjtdc', 'VFB_jrchjtde', 'VFB_fw032945', 'VFB_fw034161', 'VFB_fw029809', 'VFB_fw035057', 'VFB_fw029326', 'VFB_00006638', 'VFB_jrchjtda', 'VFB_jrchk0xk', 'VFB_fw004891', 'VFB_fw034164', 'VFB_fw035224', 'VFB_fw003885', 'VFB_jrchk0xl', 'VFB_jrchk0xm'}
No match found for VFB_fw029326
No match found for VFB_fw029809
No match found for VFB_fw003885
No match found for VFB_jrchjtda
No match found for VFB_jrchjtdh
No match found for VFB_jrchjtdg
No match found for VFB_jrchjtdd
No match found for VFB_jrchjtdc
No match found for VFB_jrchjtdb
No match found for VFB_jrchjtde
No match found for VFB_jrchjtdf
No match found for VFB_jrchk0xm
No match found for VFB_jrchk0xl
No match found for VFB_jrchk0xk
No match found for VFB_fw033192
No match found for VFB_fw033526
No match found for VFB_fw004661
No match found for VFB_fw004891
No match found for VFB_00012622
No match found for VFB_00012155
No match found for VFB_00006638
No match found for VFB_00006552
No match found for VFB_fw030443
No match found for VFB_00009611
No match found for VFB_00010085
No match found for VFB_00000323
No match found for VFB_00005625
No match found for VFB_fw032945
No match found for VFB_fw035224
No match found for VFB_fw035057
No match found for VFB_fw034164
No match found for VFB_fw034161
No match found for VFB_fw013615
[4207871, 2381753, 1811442, 2334841, 2345089, 2319457, 57311, 755022, 61221, 57323, 57381, 57353, 57179, 27295, 4520197, 4520615, 7710838]
Generate a connectivity table for neurons downstream of DA1 neurons
[41]:
da1 = pymaid.get_neurons(da1_skids_int)
da1_ds = pymaid.get_partners(da1_skids_int,
threshold=3, # anything with >= 3 synapses
directions=['outgoing'] # downstream partners only
)
# Result is a pandas DataFrame
da1_ds.head()
INFO : Cached data used. Use `pymaid.clear_cache()` to clear. (pymaid)
INFO : Cached data used. Use `pymaid.clear_cache()` to clear. (pymaid)
INFO : Fetching connectivity table for 17 neurons (pymaid)
INFO : Cached data used. Use `pymaid.clear_cache()` to clear. (pymaid)
INFO : Cached data used. Use `pymaid.clear_cache()` to clear. (pymaid)
INFO : Done. Found 0 pre-, 263 postsynaptic and 0 gap junction-connected neurons (pymaid)
[41]:
| neuron_name | skeleton_id | num_nodes | relation | 4207871 | 2381753 | 1811442 | 2334841 | 2345089 | 2319457 | ... | 61221 | 57323 | 57381 | 57353 | 57179 | 27295 | 4520197 | 4520615 | 7710838 | total | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Uniglomerular mlALT DA1 vPN mlALTed Milk 18114... | 1811442 | 11769 | downstream | 0 | 0 | 0 | 0 | 0 | 0 | ... | 26 | 20 | 4 | 3 | 0 | 15 | 0 | 0 | 0 | 121 |
| 1 | LHAV2a3#1 1870231 RJVR AJES PS | 1870230 | 14820 | downstream | 0 | 0 | 1 | 0 | 0 | 0 | ... | 7 | 7 | 28 | 23 | 0 | 10 | 0 | 0 | 0 | 100 |
| 2 | LHAV4c1#1 488056 downstream DA1 GSXEJ | 488055 | 12137 | downstream | 0 | 0 | 0 | 0 | 0 | 0 | ... | 15 | 11 | 0 | 3 | 13 | 16 | 0 | 0 | 0 | 90 |
| 3 | LHAV4a4#1 1911125 FML PS RJVR | 1911124 | 6969 | downstream | 0 | 0 | 0 | 0 | 0 | 0 | ... | 13 | 15 | 9 | 6 | 0 | 5 | 0 | 0 | 0 | 86 |
| 4 | Uniglomerular mlALT DA1 vPN mlALTed Milk 23348... | 2334841 | 6362 | downstream | 17 | 32 | 0 | 0 | 14 | 22 | ... | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 85 |
5 rows × 22 columns
[16]:
# Get an adjacency matrix between all Bates, Schlegel et al. neurons
bates = pymaid.find_neurons(annotations='Paper: Bates and Schlegel et al 2020')
adj = pymaid.adjacency_matrix(bates)
adj.head()
INFO : Cached data used. Use `pymaid.clear_cache()` to clear. (pymaid)
INFO : Found 584 neurons matching the search parameters (pymaid)
[16]:
| targets | 2863104 | 57349 | 57353 | 16 | 57361 | 15738898 | 57365 | 4182038 | 3813399 | 11524119 | ... | 57323 | 4624362 | 1853423 | 2842610 | 57333 | 4624374 | 3080183 | 57337 | 4624378 | 57341 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| sources | |||||||||||||||||||||
| 2863104 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 2.0 | 0.0 | 12.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 57349 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 57353 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 5.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 16 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 57361 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
5 rows × 584 columns

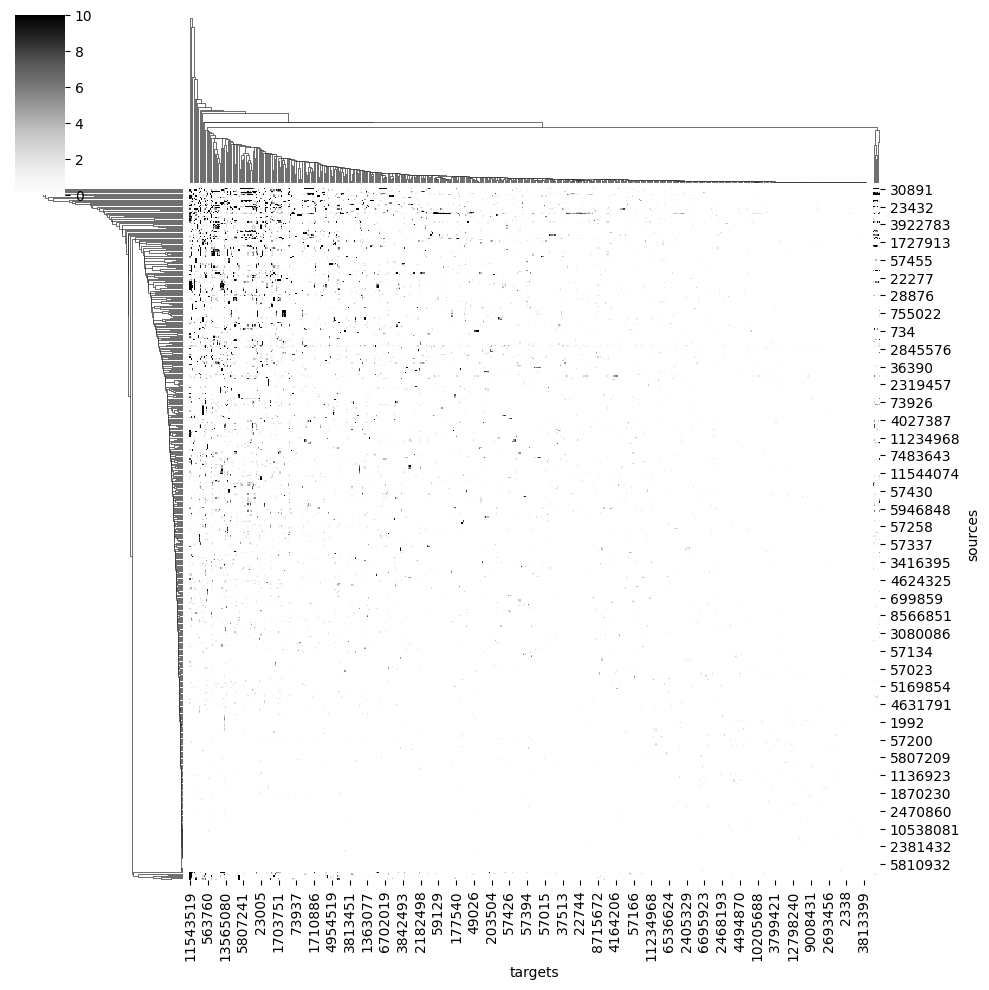

[17]:
import seaborn as sns
ax = sns.clustermap(adj, vmax=10, cmap='Greys')
# ax = sns.heatmap(adj, vmax=10, cmap='Greys')
/Users/rcourt/GIT/VFB_connect/venv_py310/lib/python3.10/site-packages/seaborn/matrix.py:560: UserWarning: Clustering large matrix with scipy. Installing `fastcluster` may give better performance.
warnings.warn(msg)
/Users/rcourt/GIT/VFB_connect/venv_py310/lib/python3.10/site-packages/seaborn/matrix.py:560: UserWarning: Clustering large matrix with scipy. Installing `fastcluster` may give better performance.
warnings.warn(msg)
[18]:
# Axo-axonic connections between two different types of DA1 PNs
cn = pymaid.get_connectors_between(2863104, 1811442)
cn.head()
[18]:
| connector_id | connector_loc | node1_id | source_neuron | confidence1 | creator1 | node1_loc | node2_id | target_neuron | confidence2 | creator2 | node2_loc | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 17870563 | [363219.0, 169182.0, 153920.0] | 6903652 | 2863104 | 5 | NaN | [362894.0, 169511.0, 153920.0] | 6546760 | 1811442 | 5 | NaN | [363421.0, 168741.0, 153920.0] |
| 1 | 6795747 | [355030.0, 154048.0, 145800.0] | 6795749 | 2863104 | 5 | NaN | [355045.0, 154180.0, 145800.0] | 6795745 | 1811442 | 5 | NaN | [355024.0, 153946.0, 145760.0] |
| 2 | 6826199 | [358042.0, 160788.0, 147600.0] | 6826200 | 2863104 | 5 | NaN | [355948.0, 160126.0, 147600.0] | 6826198 | 1811442 | 5 | NaN | [358194.0, 160883.0, 147600.0] |
| 3 | 6835037 | [354306.0, 154100.0, 152320.0] | 6835043 | 2863104 | 5 | NaN | [354088.0, 153842.0, 152320.0] | 6835033 | 1811442 | 5 | NaN | [354400.0, 154346.0, 152360.0] |
| 4 | 7032350 | [355192.0, 167586.0, 158320.0] | 7032356 | 2863104 | 5 | NaN | [354814.0, 167861.0, 158320.0] | 17870268 | 1811442 | 5 | NaN | [356626.0, 167779.0, 158200.0] |
[19]:
import numpy as np
points = np.vstack(cn.connector_loc)
navis.plot3d([da1.idx[[1811442, 57353]], # plot the two neurons
points], # plot the points of synaptic contacts as scatter
scatter_kws=dict(name="synaptic contacts")
)
INFO : Using "plotly" backend for 3D plotting. (navis)
Data type cannot be displayed: application/vnd.plotly.v1+json
neuprint connectivity queries
To programmatically interface with neuprint, we will use neuprint-python (link). It requires an API token which you can get via the website and is bound to the Google account that you use to log into neuprint. For this workshop we provide such a token as environment variable but you will need to start using your own token after the workshop is over.
These examples use the hemibrain v1.1 dataset.
neuprint-python
First we have to initialize the connection.
[20]:
!pip install neuprint-python --quiet
import neuprint as neu
client = neu.Client('https://neuprint.janelia.org',
dataset='hemibrain:v1.2.1',
token='eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJlbWFpbCI6InZmYndvcmtzaG9wLm5ldXJvZmx5MjAyMEBnbWFpbC5jb20iLCJsZXZlbCI6Im5vYXV0aCIsImltYWdlLXVybCI6Imh0dHBzOi8vbGg2Lmdvb2dsZXVzZXJjb250ZW50LmNvbS8tWXFDN21NRXd3TlEvQUFBQUFBQUFBQUkvQUFBQUFBQUFBQUEvQU1adXVjbU5zaXhXZDRhM0VyTTQ0ODBMa2IzNDdvUlpfUS9zOTYtYy9waG90by5qcGc_c3o9NTA_c3o9NTAiLCJleHAiOjE3OTQwOTE4ODd9.ceg4mrj2o-aOhK0NHNGmBacg8R34PBPoLBwhCo4uOCQ')
Most functions in neuprint-python accept neu.NeuronCriteria which is effectively a filter for body IDs, types, cellbody fibers (~lineages), etc:
[21]:
help(neu.NeuronCriteria)
Help on class NeuronCriteria in module neuprint.queries.neuroncriteria:
class NeuronCriteria(builtins.object)
| NeuronCriteria(matchvar='n', *, bodyId=None, type=None, instance=None, regex='guess', status=None, statusLabel=None, rois=None, inputRois=None, outputRois=None, roi_req='all', min_roi_inputs=1, min_roi_outputs=1, group=None, serial=None, cropped=None, birthtime=None, cellBodyFiber=None, class_=None, entryNerve=None, exitNerve=None, hemilineage=None, longTract=None, modality=None, origin=None, predictedNt=None, serialMotif=None, somaNeuromere=None, somaSide=None, subclass=None, synonyms=None, systematicType=None, target=None, label=None, min_pre=0, min_post=0, somaLocation=None, tosomaLocation=None, rootLocation=None, soma=None, client=None)
|
| Neuron selection criteria.
|
| Specifies which fields to filter by when searching for a Neuron (or Segment).
| This class does not send queries itself, but you use it to specify search
| criteria for various query functions.
|
| Note:
| For simple queries involving only particular bodyId(s) or type(s)/instance(s),
| you can usually just pass the ``bodyId`` or ``type`` to the query function,
| without constructing a full ``NeuronCriteria``.
|
| .. code-block:: python
|
| from neuprint import fetch_neurons, NeuronCriteria as NC
|
| # Equivalent
| neuron_df, conn_df = fetch_neurons(NC(bodyId=329566174))
| neuron_df, conn_df = fetch_neurons(329566174)
|
| # Equivalent
| # (Criteria is satisfied if either type or instance matches.)
| neuron_df, conn_df = fetch_neurons(NC(type="OA-VPM3", instance="OA-VPM3"))
| neuron_df, conn_df = fetch_neurons("OA-VPM3")
|
| Methods defined here:
|
| __eq__(self, value)
| Implement comparison between criteria.
| Note: 'matchvar' is not considered during the comparison.
|
| __init__(self, matchvar='n', *, bodyId=None, type=None, instance=None, regex='guess', status=None, statusLabel=None, rois=None, inputRois=None, outputRois=None, roi_req='all', min_roi_inputs=1, min_roi_outputs=1, group=None, serial=None, cropped=None, birthtime=None, cellBodyFiber=None, class_=None, entryNerve=None, exitNerve=None, hemilineage=None, longTract=None, modality=None, origin=None, predictedNt=None, serialMotif=None, somaNeuromere=None, somaSide=None, subclass=None, synonyms=None, systematicType=None, target=None, label=None, min_pre=0, min_post=0, somaLocation=None, tosomaLocation=None, rootLocation=None, soma=None, client=None)
| All criteria must be passed as keyword arguments.
|
| .. note::
| Only ``bodyId``, ``type``, ``instance``, and ROI-related criteria are
| applicable to all datasets. The applicability of all other criteria depends
| on the dataset being accessed (e.g. hemibrain, manc, etc.).
|
| .. note::
|
| **Options for specifying ROI criteria**
|
| The ``rois`` argument merely matches neurons that intersect the given ROIs at all
| (without distinguishing between inputs and outputs).
|
| The ``inputRois`` and ``outputRois`` arguments allow you to put requirements
| on whether or not neurons have inputs or outputs in the listed ROIs.
| It produces a more expensive query, but it's more selective.
| It also enables you to require a minimum number of connections in the given
| ``inputRois`` or ``outputRois`` using the ``min_roi_inputs`` and ``min_roi_outputs``
| criteria.
|
| In either case, use use ``roi_req`` to specify whether a neuron must match just
| one (``any``) of the listed ROIs, or ``all`` of them.
|
| .. note::
|
| **Matching against missing values (NULL)**
|
| To search for neurons which are missing given property entirely,
| you can use a list containing ``None``, or the special value ``neuprint.IsNull``.
| For example, to find neurons with no `type`, use ``type=[None]`` or ``type=IsNull``.
|
| **Matching against any value (NOT NULL)**
|
| To search for any non-null value, you can use ``neuprint.NotNull``. For
| example, to find neurons that have a type (no matter what the
| type is), use ``type=NotNull``.
|
| Args:
| matchvar (str):
| An arbitrary cypher variable name to use when this
| ``NeuronCriteria`` is used to construct cypher queries.
| Must begin with a lowercase letter.
|
| bodyId (int or list of ints):
| List of bodyId values.
|
| type (str or list of str):
| Cell type. Matches depend on the the ``regex`` argument.
| If both ``type`` and ``instance`` criteria are supplied, any neuron that
| matches EITHER criteria will match the overall criteria.
|
| instance (str or list of str):
| Cell instance (specific cell name). Matches depend on the the ``regex`` argument.
| If both ``type`` and ``instance`` criteria are supplied, any neuron that
| matches EITHER criteria will match the overall criteria.
|
| regex (bool):
| If ``True``, the ``instance`` and ``type`` arguments will be interpreted as
| regular expressions, rather than exact match strings.
| If ``False``, only exact matches will be found.
| By default, the matching method will be automatically chosen by inspecting the
| ``type`` and ``instance`` strings. If they contain regex-like characters,
| then we assume you intend regex matching. (You can see which method was chosen by
| checking the ``regex`` field after the ``NeuronCriteria`` is constructed.)
|
| status (str or list of str):
| Indicates the status of the neuron's reconstruction quality.
| Typically, named/annotated neurons have ``Traced`` status,
| the best quality.
| statusLabel (str or list of str):
| ``statusLabel`` is typically more fine-grained than ``status``,
| and mostly of interest during the construction of the connectome,
| not for end-users. The possible values of ``statusLabel`` do not
| correspond one-to-one to those of ``status``.
|
| rois (str or list of str):
| ROIs that merely intersect the neuron, without specifying whether
| they're intersected by input or output synapses.
| If not provided, will be auto-set from ``inputRois`` and ``outputRois``.
|
| inputRois (str or list of str):
| Only Neurons which have inputs in EVERY one of the given ROIs will be matched.
| ``regex`` does not apply to this parameter.
|
| outputRois (str or list of str):
| Only Neurons which have outputs in EVERY one of the given ROIs will be matched.
| ``regex`` does not apply to this parameter.
|
| min_roi_inputs (int):
| How many input (post) synapses a neuron must have in each ROI to satisfy the
| ``inputRois`` criteria. Can only be used if you provided ``inputRois``.
|
| min_roi_outputs (int):
| How many output (pre) synapses a neuron must have in each ROI to satisfy the
| ``outputRois`` criteria. Can only be used if you provided ``outputRois``.
|
| roi_req (Either ``'any'`` or ``'all'``):
| Whether a neuron must intersect all of the listed input/output ROIs, or any of the listed input/output ROIs.
| When using 'any', each neuron must still match at least one input AND at least one output ROI.
|
| group (int or list of int)
| In some datasets, the ``group`` ID is used to associate neurons morphological type,
| including left-right homologues. Neurons with the same group ID have matching morphology.
|
| serial (int or list of int)
| Similar to ``group``, but used for associating neurons across segmental neuropils in the nerve cord.
| Neurons with the same ``serial`` ID are analogous to one another, but in different leg segments.
|
| cropped (bool):
| If given, restrict results to neurons that are cropped or not.
|
| birthtime (str or list of str):
| cellBodyFiber (str or list of str):
| class\_ (str or list of str):
| Matches for the neuron ``class`` field.
| entryNerve (str or list of str):
| exitNerve (str or list of str):
| hemilineage (str or list of str):
| longTract (str or list of str):
| modality (str or list of str):
| origin (str or list of str):
| predictedNt (str or list of str):
| serialMotif (str or list of str):
| somaNeuromere (str or list of str):
| somaSide (str or list of str):
| Valid choices are 'RHS', 'LHS', 'Midline'
| subclass (str or list of str):
| synonyms (str or list of str):
| systematicType (str or list of str):
| target (str or list of str):
|
| label (Either ``'Neuron'`` or ``'Segment'``):
| Which node label to match with.
| (In neuprint, all ``Neuron`` nodes are also ``Segment`` nodes.)
| By default, ``'Neuron'`` is used, unless you provided a non-empty ``bodyId`` list.
| In that case, ``'Segment'`` is the default. (It's assumed you're really interested
| in the bodies you explicitly listed, whether or not they have the ``'Neuron'`` label.)
|
| min_pre (int):
| Exclude neurons that don't have at least this many t-bars (outputs) overall,
| regardless of how many t-bars exist in any particular ROI.
|
| min_post (int):
| Exclude neurons that don't have at least this many PSDs (inputs) overall,
| regardless of how many PSDs exist in any particular ROI.
|
| somaLocation:
| The ``somaLocation`` property of ``:Neuron`` objects contains
| the ``[X,Y,Z]`` coordinate (in voxels) of the cell body.
| ``NeuronCriteria`` does not allow you to match a specific coordinate,
| but you may set this argument to ``NotNull` (or ```IsNull``) to
| search for cells with (or without) a recorded cell body.
|
| tosomaLocation:
| Neurons which could not be successfully attached to their cell body do not have
| a recorded ``somaLocation``. Instead, they have an annotaiton on the cell body
| fiber, on the severed end extending out toward the cell body.
| Like ``somaLocation``, you can't match a specific coordinate using ``NeuronCriteria``,
| but you can use ``NotNull``/``IsNull``.
|
| rootLocation:
| Some (but not all) Neurons which have no soma in the tissue sample are tagged with
| a ``rootLocation``, indicating where they enter/exit the sample.
| Like ``somaLocation``, you can't match a specific coordinate using ``NeuronCriteria``,
| but you can use ``NotNull``/``IsNull``.
|
| soma (Either ``True``, ``False``, or ``None``)
| DEPRECATED. Use ``somaLocation=NotNull`` or ``somaLocation=IsNull``.
|
| client (:py:class:`neuprint.client.Client`):
| Used to validate ROI names.
| If not provided, the global default ``Client`` will be used.
|
| __repr__(self)
| Return repr(self).
|
| all_conditions(self, *vars, prefix=0, comments=True)
|
| basic_conditions(self, prefix=0, comments=True)
| Construct a WHERE clause based on the basic conditions
| in this criteria (i.e. everything except for the "directed ROI" conditions.)
|
| basic_exprs(self)
| Return the list of expressions that correspond
| to the members in this NeuronCriteria object.
| They're intended be combined (via 'AND') in
| the WHERE clause of a cypher query.
|
| directed_rois_condition(self, *vars, prefix=0, comments=True)
| Construct the ```WITH...WHERE``` statements that apply the "directed ROI"
| conditions specified by this criteria's ``inputRois`` and ``outputRois``
| members.
|
| These conditions are expensive to evaluate, so it's usually a good
| idea to position them LAST in your cypher query, once the result set
| has already been narrowed down by eariler filters.
|
| global_vars(self)
|
| global_with(self, *vars, prefix=0)
|
| rois_expr(self)
|
| typeinst_expr(self)
| Unlike all other fields, type and instance OR'd together.
| Either match satisfies the criteria.
|
| ----------------------------------------------------------------------
| Class methods defined here:
|
| combined_conditions(neuron_conditions, vars=[], prefix=0, comments=True) from builtins.type
| Combine the conditions from multiple NeuronCriteria into a single string,
| putting the "cheap" conditions first and the "expensive" conditions last.
| (That is, basic conditions first and the directed ROI conditions last.)
|
| combined_global_with(neuron_conditions, vars=[], prefix=0) from builtins.type
|
| ----------------------------------------------------------------------
| Data descriptors defined here:
|
| __dict__
| dictionary for instance variables (if defined)
|
| __weakref__
| list of weak references to the object (if defined)
|
| birthtime
|
| bodyId
|
| cellBodyFiber
|
| class_
|
| entryNerve
|
| exitNerve
|
| group
|
| hemilineage
|
| inputRois
|
| instance
|
| longTract
|
| modality
|
| origin
|
| outputRois
|
| predictedNt
|
| rois
|
| serial
|
| serialMotif
|
| somaNeuromere
|
| somaSide
|
| status
|
| statusLabel
|
| subclass
|
| synonyms
|
| systematicType
|
| target
|
| type
|
| ----------------------------------------------------------------------
| Data and other attributes defined here:
|
| MAX_LITERAL_LENGTH = 3
|
| __hash__ = None
Fetching neurons
Let’s say we want to find all antennnal lobe projection neurons (PNs). Their type nomenclature adheres to {glomerulus}_{lineage}PN (e.g. DA1_lPN)for uniglomerular PNs and a M_{lineage}PN{tract}{type} (e.g. M_vPNml50 = “multiglomerular ventral lineage PN mediolateral tract type 50) for multiglomerular PNs.
To get them all, we need to use regex patterns (see this cheatsheet):
[22]:
# Define the filter criteria
nc = neu.NeuronCriteria(type='.*?_.*?PN.*?', regex=True)
# Get general info for these neurons
pns, roi_info = neu.fetch_neurons(nc)
print(f'{pns.shape[0]} PNs found.')
pns.head()
369 PNs found.
[22]:
| bodyId | instance | type | pre | post | downstream | upstream | mito | size | status | cropped | statusLabel | cellBodyFiber | somaRadius | somaLocation | roiInfo | notes | inputRois | outputRois | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 294792184 | M_vPNml53_R | M_vPNml53 | 92 | 348 | 730 | 348 | 97 | 424947333 | Traced | False | Roughly traced | AVM04 | 336.5 | [18923, 34319, 35424] | {'SNP(R)': {'pre': 70, 'post': 155, 'downstrea... | None | [AL(R), AL-D(R), AL-DA2(R), AL-DA4m(R), AL-DC1... | [AL(R), AL-DC1(R), LH(R), PLP(R), SIP(R), SLP(... |
| 1 | 329599710 | M_lvPNm32_R | M_lvPNm32 | 247 | 285 | 2051 | 285 | 132 | 344079818 | Traced | False | Roughly traced | AVM06 | NaN | None | {'SNP(R)': {'pre': 180, 'post': 93, 'downstrea... | None | [AL(R), AL-DC4(R), AL-DL2v(R), AL-DM1(R), AL-D... | [AL(R), AL-DL2v(R), AL-DM1(R), AL-DM4(R), AL-D... |
| 2 | 417199910 | M_lvPNm36_R | M_lvPNm36 | 162 | 361 | 1586 | 361 | 118 | 389682828 | Traced | False | Roughly traced | AVM06 | 351.5 | [13823, 33925, 34176] | {'SNP(R)': {'pre': 156, 'post': 95, 'downstrea... | VP1l+ lvPN2 (Marin et al. Curr Biol 2020) | [AL(R), AL-DL5(R), AL-DM4(R), AL-DP1m(R), AL-V... | [AL(R), AL-DL5(R), AL-DM4(R), AL-VP1d(R), AL-V... |
| 3 | 480927537 | M_vPNml70_R | M_vPNml70 | 83 | 279 | 698 | 279 | 73 | 244229430 | Traced | False | Roughly traced | AVM04 | NaN | None | {'SNP(R)': {'pre': 15, 'post': 18, 'downstream... | None | [AL(R), AL-DA2(R), AL-DA4l(R), AL-DA4m(R), AL-... | [LH(R), SLP(R), SNP(R)] |
| 4 | 481268653 | M_vPNml89_R | M_vPNml89 | 146 | 58 | 1609 | 58 | 95 | 266715893 | Traced | False | Roughly traced | AVM04 | NaN | None | {'SNP(R)': {'pre': 10, 'post': 2, 'downstream'... | None | [AL(R), AL-VC3l(R), AL-VC4(R), AL-VP1m(R), LH(... | [LH(R), SLP(R), SNP(R)] |
[23]:
# Check that the regex did not have any accidental by-catch
pns['type'].unique()
[23]:
array(['M_vPNml53', 'M_lvPNm32', 'M_lvPNm36', 'M_vPNml70', 'M_vPNml89',
'VP1l+_lvPN', 'M_vPNml69', 'DM1_lPN', 'DM4_vPN', 'M_vPNml79',
'VP4+_vPN', 'DA4l_adPN', 'M_vPNml87', 'DM4_adPN', 'M_vPNml83',
'VA5_lPN', 'DA4m_adPN', 'M_lvPNm24', 'M_vPNml85', 'VP1l+VP3_ilPN',
'M_vPNml77', 'M_vPNml84', 'VC1_lPN', 'M_lvPNm39', 'M_vPNml50',
'DM2_lPN', 'VC5_lvPN', 'M_vPNml88', 'M_vPNml58', 'VP4_vPN',
'DP1m_vPN', 'DP1m_adPN', 'DM5_lPN', 'VC5_adPN', 'M_vPNml80',
'M_lvPNm25', 'VC3m_lvPN', 'VP3+_vPN', 'VP1m+_lvPN', 'DA3_adPN',
'V_l2PN', 'M_vPNml56', 'VC3l_adPN', 'VM7v_adPN', 'DL5_adPN',
'VM4_adPN', 'VM2_adPN', 'M_lvPNm40', 'DC4_vPN', 'V_ilPN',
'M_vPNml74', 'Z_lvPNm1', 'DA1_lPN', 'DP1l_adPN', 'VM4_lvPN',
'M_vPNml71', 'DP1l_vPN', 'M_lvPNm41', 'M_spPN5t10', 'DA1_vPN',
'VC4_adPN', 'DM3_adPN', 'M_lvPNm45', 'VL1_vPN', 'M_lvPNm44',
'M_vPNml78', 'M_vPNml67', 'M_adPNm5', 'M_smPNm1', 'DM6_adPN',
'DL2d_adPN', 'M_adPNm6', 'M_adPNm8', 'M_lvPNm43', 'Z_vPNml1',
'M_vPNml59', 'DA2_lPN', 'M_lPNm11A', 'M_vPNml52', 'DL2d_vPN',
'VL2p_vPN', 'VA1d_adPN', 'M_lPNm11B', 'M_lvPNm48', 'M_lPNm11C',
'M_lvPNm42', 'VA1v_vPN', 'M_vPNml68', 'M_vPNml55', 'VM7d_adPN',
'M_vPNml62', 'VL2a_vPN', 'M_vPNml60', 'M_vPNml65', 'VM5d_adPN',
'M_l2PNm16', 'M_vPNml61', 'M_vPNml57', 'M_vPNml64', 'M_lv2PN9t49',
'VP2+VC5_l2PN', 'M_spPN4t9', 'M_vPNml66', 'M_vPNml75', 'DC2_adPN',
'M_vPNml63', 'M_vPNml72', 'DL1_adPN', 'M_lvPNm38', 'D_adPN',
'M_vPNml76', 'M_vPNml54', 'DM3_vPN', 'M_vPNml86', 'VA6_adPN',
'DL3_lPN', 'VA4_lPN', 'VP1d_il2PN', 'DC1_adPN', 'M_l2PN3t18',
'M_lvPNm35', 'DL4_adPN', 'M_lvPNm28', 'M_lvPNm27', 'M_ilPNm90',
'M_l2PNl20', 'M_lvPNm29', 'VA7l_adPN', 'M_lPNm13', 'M_l2PNl21',
'M_imPNl92', 'M_vPNml73', 'M_ilPN8t91', 'M_l2PNm14',
'VP1d+VP4_l2PN1', 'M_lvPNm26', 'DL2v_adPN', 'VP3+VP1l_ivPN',
'M_lvPNm33', 'VA1v_adPN', 'VP3+_l2PN', 'M_l2PN10t19',
'VP4+VL1_l2PN', 'M_l2PNl22', 'M_l2PNm15', 'M_lPNm11D', 'MZ_lv2PN',
'M_lvPNm46', 'VC2_lPN', 'VM1_lPN', 'VM3_adPN', 'M_lvPNm47',
'M_lPNm12', 'DC3_adPN', 'VP2+_adPN', 'VP1m+VP2_lvPN2',
'VP1m+VP2_lvPN1', 'VA7m_lPN', 'M_adPNm7', 'M_adPNm4', 'VM5v_adPN',
'VA1d_vPN', 'VA3_adPN', 'VL1_ilPN', 'M_l2PNl23', 'M_lvPNm31',
'VP1m+VP5_ilPN', 'VL2p_adPN', 'MZ_lvPN', 'VP2_adPN', 'VA2_adPN',
'VP5+VP2_l2PN', 'VP5+VP3_l2PN', 'VP5+_l2PN', 'M_vPNml51',
'M_smPN6t2', 'M_lvPNm37', 'M_vPNml82', 'M_adPNm3', 'DC4_adPN',
'VP1m_l2PN', 'VP5+Z_adPN', 'VL2a_adPN', 'VP2_l2PN', 'M_lvPNm34',
'VP2+Z_lvPN', 'M_lvPNm30', 'M_l2PNm17', 'M_vPNml81',
'VP1d+VP4_l2PN2'], dtype=object)
We can find the same neuron types using VFB instead. This allows curated neuron classes to be used and doesn’t depend on knowing naming conventions and using potentially error prone regex pattern matching.
[24]:
#This will get all ALPNs from ALL datasets on VFB
ALPNs = vfb.get_instances("'adult antennal lobe projection neuron'", return_dataframe=True, limit=300)
# Explode the lists in the 'data_source' column into separate rows as each image can potentialy have multiple data sources. Note this can be done for any column with lists
exploded_ALPNs = ALPNs.explode('data_source')
#Select only rows from Hemibrain dataset
ALPNs=exploded_ALPNs[exploded_ALPNs['data_source'] == 'hb']
ALPNs
Limiting to 300 terms out of 2462
[24]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | M_lvPNm29_R (FlyEM-HB:1672293837) | M_lvPNm29_R | VFB_jrchk0wx | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult multiglomerular antennal lobe projectio... | [FBbt_20003810] | hb | [1672293837] | [neuronbridge:hemibrain:1672293837, hb:1672293... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 21 | M_lvPNm25_R (FlyEM-HB:1411784734) | M_lvPNm25_R | VFB_jrchk0wr | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult multiglomerular antennal lobe projectio... | [FBbt_20003806] | hb | [1411784734] | [neuronbridge:hemibrain:1411784734, hb:1411784... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 22 | M_vPNml53_R (FlyEM-HB:1570685224) | M_vPNml53_R | VFB_jrchk0y4 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult multiglomerular antennal lobe projectio... | [FBbt_20003830] | hb | [1570685224] | [hb:1570685224, neuronbridge:hemibrain:1570685... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 23 | M_lvPNm27_R (FlyEM-HB:1670973150) | M_lvPNm27_R | VFB_jrchk0wv | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult multiglomerular antennal lobe projectio... | [FBbt_20003808] | hb | [1670973150] | [neuronbridge:hemibrain:1670973150, hb:1670973... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 24 | M_vPNml55_R (FlyEM-HB:886812643) | M_vPNml55_R | VFB_jrchk0y8 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult multiglomerular antennal lobe projectio... | [FBbt_20003832] | hb | [886812643] | [hb:886812643, neuronbridge:hemibrain:886812643] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 166 | M_vPNml89_R (FlyEM-HB:481268653) | M_vPNml89_R | VFB_jrchk0zz | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult multiglomerular... | [FBbt_00058207, FBbt_20003864] | hb | [481268653] | [hb:481268653, neuronbridge:hemibrain:481268653] | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 167 | M_vPNml86_R (FlyEM-HB:5813045696) | M_vPNml86_R | VFB_jrchk0zu | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult multiglomerular antennal lobe projectio... | [FBbt_20003861] | hb | [5813045696] | [neuronbridge:hemibrain:5813045696, hb:5813045... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 168 | M_vPNml87_R (FlyEM-HB:572663539) | M_vPNml87_R | VFB_jrchk0zw | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult multiglomerular... | [FBbt_00058207, FBbt_20003862] | hb | [572663539] | [hb:572663539, neuronbridge:hemibrain:572663539] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 169 | M_vPNml86_R (FlyEM-HB:1571025824) | M_vPNml86_R | VFB_jrchk0zv | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult multiglomerular... | [FBbt_00058207, FBbt_20003861] | hb | [1571025824] | [neuronbridge:hemibrain:1571025824, hb:1571025... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 170 | M_vPNml88_R (FlyEM-HB:634379734) | M_vPNml88_R | VFB_jrchk0zy | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult GABAergic neuron, adult multiglomerular... | [FBbt_00058207, FBbt_20003863] | hb | [634379734] | [neuronbridge:hemibrain:634379734, hb:634379734] | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
151 rows × 13 columns
Fetching synaptic partners
Looks good! Next: What’s downstream of those PNs?
[25]:
exploded_ALPNs = ALPNs.explode('accession')
ds = neu.fetch_simple_connections(upstream_criteria=list(map(int, exploded_ALPNs['accession'])))
#using hemibrain regex
#ds = neu.fetch_simple_connections(upstream_criteria=neu.NeuronCriteria(bodyId=pns.bodyId.values))
ds
[25]:
| bodyId_pre | bodyId_post | weight | type_pre | type_post | instance_pre | instance_post | conn_roiInfo | |
|---|---|---|---|---|---|---|---|---|
| 0 | 1316245799 | 604709727 | 228 | M_spPN4t9 | LHPV10b1 | M_spPN4t9_R | LHPV10b1_R | {'VLNP(R)': {'pre': 33, 'post': 33}, 'PLP(R)':... |
| 1 | 610274029 | 423748579 | 225 | M_vPNml50 | LHPV10d1 | M_vPNml50_R | LHPV10d1_R | {'INP': {'pre': 33, 'post': 33}, 'SCL(R)': {'p... |
| 2 | 5812982656 | 732034854 | 224 | M_smPN6t2 | CL362 | M_smPN6t2_L | CL362(SCB033)_R | {'INP': {'pre': 109, 'post': 108}, 'SCL(R)': {... |
| 3 | 610274046 | 423748579 | 209 | M_vPNml50 | LHPV10d1 | M_vPNml50_R | LHPV10d1_R | {'SNP(R)': {'pre': 185, 'post': 186}, 'SIP(R)'... |
| 4 | 763730414 | 602476655 | 157 | M_smPNm1 | LHPV9b1 | M_smPNm1_L | LHPV9b1_R | {'INP': {'pre': 89, 'post': 91}, 'SCL(R)': {'p... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 26906 | 5901194556 | 5812980006 | 1 | M_lvPNm37 | SLP368 | M_lvPNm37_R | SLP368_R | {'SNP(R)': {'pre': 1, 'post': 1}, 'SLP(R)': {'... |
| 26907 | 5901194556 | 5812980884 | 1 | M_lvPNm37 | SMP339 | M_lvPNm37_R | SMP339_R | {'SNP(R)': {'pre': 1, 'post': 1}, 'SLP(R)': {'... |
| 26908 | 5901194556 | 5813009378 | 1 | M_lvPNm37 | SLP459 | M_lvPNm37_R | SLP459(SCB020)_R | {'SNP(R)': {'pre': 1, 'post': 1}, 'SLP(R)': {'... |
| 26909 | 5901194556 | 5813071319 | 1 | M_lvPNm37 | DN1pB | M_lvPNm37_R | DN1pB_R | {'SNP(R)': {'pre': 1, 'post': 1}, 'SLP(R)': {'... |
| 26910 | 5901194556 | 5813071384 | 1 | M_lvPNm37 | vLN26 | M_lvPNm37_R | vLN26_R | {'AL(R)': {'pre': 1, 'post': 1}, 'AL-VP4(R)': ... |
26911 rows × 8 columns
Each row is now a connections from a single up- to a single downstream neuron. The “weight” is the number of synapses between the pre- and the postsynaptic neuron. Let’s simplify by grouping by type:
[26]:
by_type = ds.groupby(['type_pre', 'type_post'], as_index=False).weight.sum()
by_type.sort_values('weight', ascending=False, inplace=True)
by_type.reset_index(drop=True, inplace=True)
by_type
[26]:
| type_pre | type_post | weight | |
|---|---|---|---|
| 0 | M_lPNm11D | lLN2T_a | 807 |
| 1 | M_vPNml50 | LHPV10d1 | 528 |
| 2 | M_lPNm11D | lLN1_b | 497 |
| 3 | M_lPNm11D | lLN2P_c | 447 |
| 4 | M_lPNm11D | lLN1_c | 333 |
| ... | ... | ... | ... |
| 14493 | M_lvPNm28 | SMP011 | 1 |
| 14494 | M_vPNml54 | LHPV6f3_b | 1 |
| 14495 | M_lvPNm28 | SMP022 | 1 |
| 14496 | M_lvPNm28 | SMP035 | 1 |
| 14497 | M_vPNml89 | SMP010 | 1 |
14498 rows × 3 columns
The strongest connections are between PNs and Kenyon Cells (KCs). That’s not much of a surprise since there are thousands of KCs. For the sake of the argument let’s say we want to know where these connections occur:
[27]:
#First find KCs in VFB
KCs = vfb.get_instances("'adult Kenyon cell'", return_dataframe=True, limit=300)
#Select only rows from Hemibrain dataset
exploded_KCs = KCs.explode('data_source')
KCs=exploded_KCs[exploded_KCs['data_source'] == 'hb']
KCs
Limiting to 300 terms out of 10296
[27]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55 | KCab-c_R (FlyEM-HB:5812981654) | KCab-c_R | VFB_jrchjvfs | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, mushroom body do... | [FBbt_00110929, FBbt_00048138, FBbt_00058206] | hb | [5812981654] | [hb:5812981654, neuronbridge:hemibrain:5812981... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 56 | KCab-c_R (FlyEM-HB:939742503) | KCab-c_R | VFB_jrchjvh5 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, adult dopaminerg... | [FBbt_00110929, FBbt_00058206, FBbt_00048138] | hb | [939742503] | [neuronbridge:hemibrain:939742503, hb:939742503] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 57 | KCab-c_R (FlyEM-HB:363375475) | KCab-c_R | VFB_jrchjvfw | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, adult dopaminerg... | [FBbt_00110929, FBbt_00058206, FBbt_00048138] | hb | [363375475] | [neuronbridge:hemibrain:363375475, hb:363375475] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 58 | KCab-c_R (FlyEM-HB:5812980448) | KCab-c_R | VFB_jrchjvh9 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, adult dopaminerg... | [FBbt_00110929, FBbt_00058206, FBbt_00048138] | hb | [5812980448] | [neuronbridge:hemibrain:5812980448, hb:5812980... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 59 | KCab-c_R (FlyEM-HB:5812980594) | KCab-c_R | VFB_jrchjvfu | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, mushroom body do... | [FBbt_00110929, FBbt_00048138, FBbt_00058206] | hb | [5812980594] | [neuronbridge:hemibrain:5812980594, hb:5812980... | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 257 | KCab-c_R (FlyEM-HB:630373425) | KCab-c_R | VFB_jrchjvcf | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, adult dopaminerg... | [FBbt_00110929, FBbt_00058206, FBbt_00048138] | hb | [630373425] | [hb:630373425, neuronbridge:hemibrain:630373425] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 258 | KCab-c_R (FlyEM-HB:939738473) | KCab-c_R | VFB_jrchjve1 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, mushroom body do... | [FBbt_00110929, FBbt_00048138, FBbt_00058206] | hb | [939738473] | [neuronbridge:hemibrain:939738473, hb:939738473] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 259 | KCab-c_R (FlyEM-HB:767502579) | KCab-c_R | VFB_jrchjvcc | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, adult dopaminerg... | [FBbt_00110929, FBbt_00058206, FBbt_00048138] | hb | [767502579] | [hb:767502579, neuronbridge:hemibrain:767502579] | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 260 | KCab-c_R (FlyEM-HB:848316930) | KCab-c_R | VFB_jrchjvft | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, mushroom body do... | [FBbt_00110929, FBbt_00048138, FBbt_00058206] | hb | [848316930] | [hb:848316930, neuronbridge:hemibrain:848316930] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 261 | KCab-c_R (FlyEM-HB:5812983133) | KCab-c_R | VFB_jrchjvh6 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [alpha/beta core Kenyon cell, adult dopaminerg... | [FBbt_00110929, FBbt_00058206, FBbt_00048138] | hb | [5812983133] | [neuronbridge:hemibrain:5812983133, hb:5812983... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
187 rows × 13 columns
[28]:
exploded_KCs = KCs.explode('accession')
adj, roi_info2 = neu.fetch_adjacencies(sources=list(map(int, exploded_ALPNs['accession'][:300])), targets=list(map(int, exploded_KCs['accession'][:300])))
roi_info2.head()
[28]:
| bodyId_pre | bodyId_post | roi | weight | |
|---|---|---|---|---|
| 0 | 1887872301 | 394755742 | CA(R) | 5 |
| 1 | 1887872301 | 425445301 | CA(R) | 1 |
| 2 | 1887872301 | 673715784 | CA(R) | 10 |
| 3 | 1887872301 | 754879354 | CA(R) | 3 |
| 4 | 1887872301 | 829231385 | CA(R) | 12 |
[29]:
# Group by region of interest (ROI)
by_roi = roi_info2.groupby('roi').weight.sum()
by_roi.head()
[29]:
roi
CA(R) 97
SCL(R) 7
Name: weight, dtype: int64
[30]:
ax = by_roi.plot.bar()
ax.set_xlabel('')
ax.set_ylabel('PN to KC synapses')
[30]:
Text(0, 0.5, 'PN to KC synapses')
[31]:
adj = roi_info2[roi_info2.roi == 'CA(R)'].pivot(columns="bodyId_pre",
index="bodyId_post",
values="weight").fillna(0)
[32]:

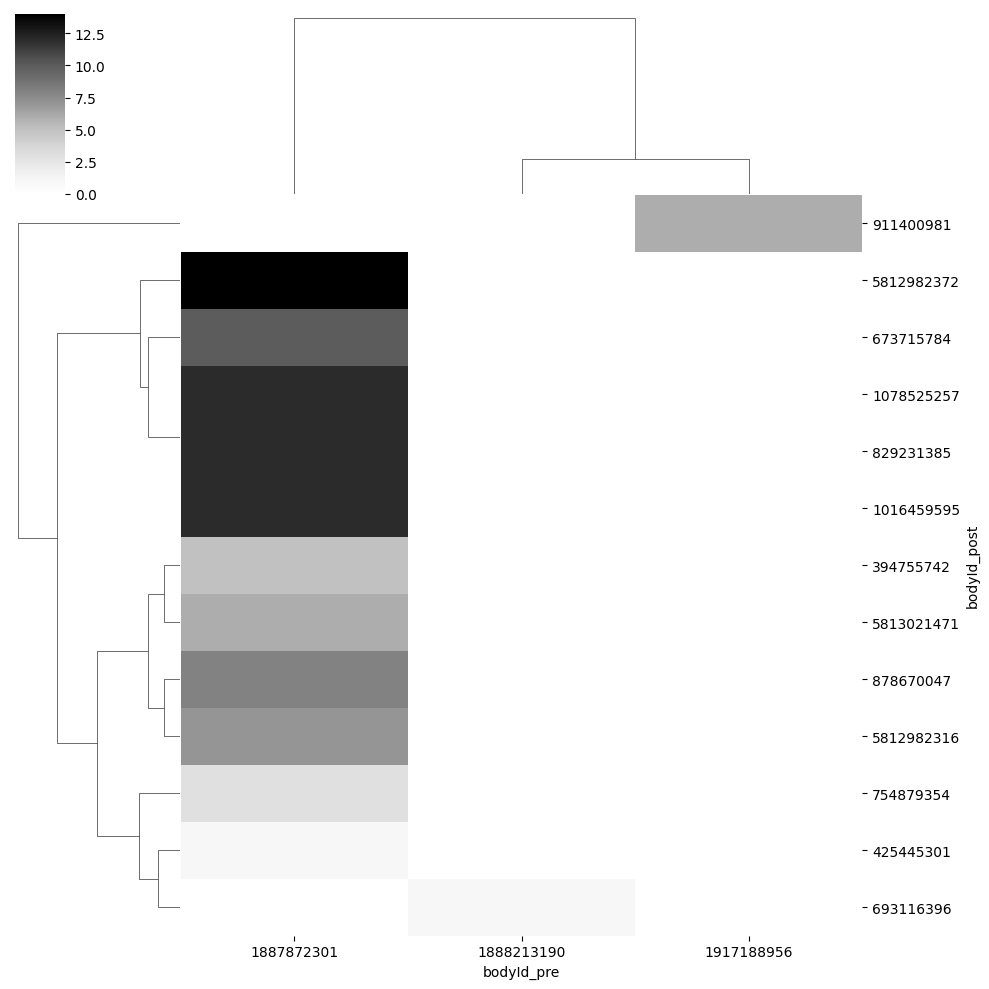

sns.clustermap(adj, cmap='Greys')
[32]:
<seaborn.matrix.ClusterGrid at 0x35e7f6350>
Querying paths
Let’s say we want to find out how to go from a PN (second order olfactory neurons) all the way to a descending neuron (presumably leading to motor neurons in the VNC).
[33]:
#First find DNs in VFB
DNs = vfb.get_instances("'adult descending neuron'", limit=300)
#Select only rows from Hemibrain dataset
exploded_DNs = DNs.explode('data_source')
DNs=exploded_DNs[exploded_DNs['data_source'] == 'hb']
DNs
Limiting to 300 terms out of 2949
[33]:
| label | symbol | id | tags | description | parents_label | parents_id | data_source | accession | xrefs | templates | dataset | license | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 117 | SMP462_R (FlyEM-HB:388975834) | SMP462_R | VFB_jrchk711 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult superior medial protocerebrum neuron 462] | [FBbt_20003324] | hb | [388975834] | [neuronbridge:hemibrain:388975834, hb:388975834] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 118 | SMP462(PDM12)_L (FlyEM-HB:5813011443) | SMP462(PDM12)_L | VFB_jrchk712 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult superior medial protocerebrum neuron 462] | [FBbt_20003324] | hb | [5813011443] | [hb:5813011443, neuronbridge:hemibrain:5813011... | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 119 | SMP454_R (FlyEM-HB:326253554) | SMP454_R | VFB_jrchk70f | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult superior medial protocerebrum neuron 454] | [FBbt_20003316] | hb | [326253554] | [hb:326253554, neuronbridge:hemibrain:326253554] | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 120 | SMP454(PDM12)_L (FlyEM-HB:328010530) | SMP454(PDM12)_L | VFB_jrchk70e | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult superior medial protocerebrum neuron 454] | [FBbt_20003316] | hb | [328010530] | [neuronbridge:hemibrain:328010530, hb:328010530] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 121 | SMP478_R (FlyEM-HB:297925719) | SMP478_R | VFB_jrchk728 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult superior medial protocerebrum neuron 478] | [FBbt_20003340] | hb | [297925719] | [hb:297925719, neuronbridge:hemibrain:297925719] | [JRC_FlyEM_Hemibrain, JRC2018Unisex] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
| 122 | SMP478(PDM15)_L (FlyEM-HB:487636204) | SMP478(PDM15)_L | VFB_jrchk729 | [Entity, Individual, VFB, Neuron, Adult, Anato... | tracing status-Roughly traced, cropped-False | [adult superior medial protocerebrum neuron 478] | [FBbt_20003340] | hb | [487636204] | [neuronbridge:hemibrain:487636204, hb:487636204] | [JRC2018Unisex, JRC_FlyEM_Hemibrain] | [Xu2020NeuronsV1point2point1] | [https://creativecommons.org/licenses/by/4.0/l... |
[34]:
# First fetch the DNs
exploded_DNs = DNs.explode('accession')
dns, _ = neu.fetch_neurons(list(map(int, exploded_DNs['accession'])))
#with regex
#dns, _ = neu.fetch_neurons(neu.NeuronCriteria(type='(.*DN[^1]{0,}.*|Giant Fiber)', regex=True))
dns
[34]:
| bodyId | instance | type | pre | post | downstream | upstream | mito | size | status | cropped | statusLabel | cellBodyFiber | somaRadius | somaLocation | roiInfo | notes | inputRois | outputRois | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 297925719 | SMP478_R | SMP478 | 11 | 514 | 33 | 514 | 165 | 892596595 | Traced | False | Roughly traced | PDM15 | 301.0 | [18670, 15472, 12256] | {'SNP(R)': {'pre': 8, 'post': 411, 'downstream... | pMP1 candidates | [INP, SCL(R), SIP(R), SLP(R), SMP(L), SMP(R), ... | [SIP(R), SMP(R), SNP(R)] |
| 1 | 326253554 | SMP454_R | SMP454 | 2613 | 9868 | 21858 | 9868 | 1731 | 8277332128 | Traced | False | Roughly traced | PDM12 | 465.5 | [22142, 20149, 5600] | {'SNP(R)': {'pre': 1374, 'post': 3670, 'downst... | None | [ATL(R), AVLP(R), CAN(R), CRE(-ROB,-RUB)(R), C... | [AOTU(R), AVLP(R), CRE(-ROB,-RUB)(R), CRE(-RUB... |
| 2 | 328010530 | SMP454(PDM12)_L | SMP454 | 3323 | 7850 | 26321 | 7850 | 1604 | 7640464171 | Traced | False | Roughly traced | None | 504.0 | [27686, 22424, 5696] | {'SNP(R)': {'pre': 1726, 'post': 597, 'downstr... | None | [AME(R), ATL(L), AVLP(R), CRE(-ROB,-RUB)(R), C... | [AME(R), ATL(L), AVLP(R), CRE(-ROB,-RUB)(R), C... |
| 3 | 388975834 | SMP462_R | SMP462 | 369 | 3569 | 1965 | 3569 | 538 | 2344439861 | Traced | False | Roughly traced | PDM12 | 436.0 | [21444, 17917, 9008] | {'SNP(R)': {'pre': 338, 'post': 3534, 'downstr... | pMP9 candidates | [CRE(-ROB,-RUB)(R), CRE(R), FLA(R), INP, PENP,... | [CX, FB, FBl7, FLA(R), INP, PENP, SCL(R), SIP(... |
| 4 | 487636204 | SMP478(PDM15)_L | SMP478 | 15 | 394 | 80 | 394 | 145 | 590130050 | Traced | False | Roughly traced | None | NaN | None | {'SNP(R)': {'pre': 10, 'post': 170, 'downstrea... | pMP1 candidates | [SMP(L), SMP(R), SNP(L), SNP(R)] | [SMP(L), SMP(R), SNP(L), SNP(R)] |
| 5 | 5813011443 | SMP462(PDM12)_L | SMP462 | 262 | 1738 | 1452 | 1738 | 419 | 1571626970 | Traced | False | Roughly traced | None | 361.0 | [30176, 18324, 10256] | {'SNP(L)': {'pre': 259, 'post': 1720, 'downstr... | pMP9 candidates | [SIP(L), SMP(L), SMP(R), SNP(L), SNP(R), mALT(L)] | [SIP(L), SMP(L), SMP(R), SNP(L), SNP(R)] |
Neuprint lets you query paths from a single source to a single target. For multi-source or -target queries, your best bet is to download the entire graph and run the queries locally using networkx or igraph.
[35]:
# Find all paths from A PN to A DNs
paths = neu.fetch_shortest_paths(upstream_bodyId=list(map(int, exploded_ALPNs['accession']))[0],
downstream_bodyId=list(map(int, exploded_DNs['accession']))[0],
min_weight=10)
paths
[35]:
| path | bodyId | type | weight | |
|---|---|---|---|---|
| 0 | 0 | 1672293837 | M_lvPNm29 | 0 |
| 1 | 0 | 362041442 | SIP019 | 22 |
| 2 | 0 | 330640044 | SMP181 | 13 |
| 3 | 0 | 388975834 | SMP462 | 12 |
| 4 | 1 | 1672293837 | M_lvPNm29 | 0 |
| 5 | 1 | 392368893 | LHPD2d1 | 11 |
| 6 | 1 | 5813020676 | SMP182 | 13 |
| 7 | 1 | 388975834 | SMP462 | 10 |
| 8 | 2 | 1672293837 | M_lvPNm29 | 0 |
| 9 | 2 | 330268940 | LHCENT9 | 13 |
| 10 | 2 | 5813049380 | SIP029 | 14 |
| 11 | 2 | 388975834 | SMP462 | 17 |
| 12 | 3 | 1672293837 | M_lvPNm29 | 0 |
| 13 | 3 | 328611004 | LHPV5e1 | 22 |
| 14 | 3 | 5813049380 | SIP029 | 69 |
| 15 | 3 | 388975834 | SMP462 | 17 |
So it looks like there are three separate 7-hop paths to go from M_vPNml53 to DN1a. Let’s visualize the neurons involved!
Fetching meshes & skeletons
You can fetch skeletons as SWCs directly via neuprint-python. For visualization however it’s easiest to load neuron morphologies via navis. For that navis wraps neuprint-python and adds some convenience functions (see also the tutorial):
[36]:
# Import the wrapped neuprint-python
# -> this exposes ALL base functions plus a couple navis-specific extras
# import navis
# import navis.interfaces.neuprint as neu
# client = neu.Client('https://neuprint.janelia.org', dataset='hemibrain:v1.2.1')
# Fetch neurons in the first path
bodyIDS = paths.loc[(paths.path == 0), 'bodyId']
# nl = neu.fetch_skeletons(paths.loc[(paths.path == 0), 'bodyId'])
# nl
xrefs = ['neuprint_JRC_Hemibrain_1point2point1:' + str(id) for id in bodyIDS]
nl_terms = vfb.terms(xrefs)
nl = [term.skeleton for term in nl_terms]
nl_terms.summary
Pulling 4 terms from VFB...
Warning: Substitution made. 'ALlv1 lineage neuron' was matched to 'adult ALlv1 lineage neuron'.
Defaulting to JRC2018Unisex template
Defaulting to JRC2018Unisex template
Defaulting to JRC2018Unisex template
Defaulting to JRC2018Unisex template
[36]:
| ID | Name | Description | URL | Related Terms | Parents | License | Cross References | Datasets | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | VFB_jrchk55g | SIP019_R | tracing status-Roughly traced, cropped-False | https://n2t.net/vfb:VFB_jrchk55g | [Rel(relation=MinimalEdgeInfo(label=capable of... | [SIP019] | CC_BY | [https://neuprint.janelia.org/results?dataset=... | [JRC_FlyEM_Hemibrain neurons Version 1.2.1] |
| 1 | VFB_jrchk0wx | M_lvPNm29_R | tracing status-Roughly traced, cropped-False | https://n2t.net/vfb:VFB_jrchk0wx | [Rel(relation=MinimalEdgeInfo(label=capable of... | [M_lvPNm29] | CC_BY | [https://neuronbridge.janelia.org/search?q=hem... | [JRC_FlyEM_Hemibrain neurons Version 1.2.1] |
| 2 | VFB_jrchk711 | SMP462_R | tracing status-Roughly traced, cropped-False | https://n2t.net/vfb:VFB_jrchk711 | [Rel(relation=MinimalEdgeInfo(label=capable of... | [SMP462] | CC_BY | [https://neuronbridge.janelia.org/search?q=hem... | [JRC_FlyEM_Hemibrain neurons Version 1.2.1] |
| 3 | VFB_jrchk6hw | SMP181_R | tracing status-Roughly traced, cropped-False | https://n2t.net/vfb:VFB_jrchk6hw | [Rel(relation=MinimalEdgeInfo(label=capable of... | [SMP181] | CC_BY | [https://neuprint.janelia.org/results?dataset=... | [JRC_FlyEM_Hemibrain neurons Version 1.2.1] |
[37]:
# Let's also get some ROI meshes
# al = neu.fetch_roi('AL(R)')
# lh = neu.fetch_roi('LH(R)')
# ca = neu.fetch_roi('CA(R)')
# If the neuprint server fails to return the meshes (often due to capacity issues), we can use the VFB API to get the meshes instead
[al,lh,ca] = [term.mesh for term in vfb.terms(['AL(R) on JRC_FlyEM_Hemibrain','LH(R) on JRC_FlyEM_Hemibrain','CA(R) on JRC_FlyEM_Hemibrain'])]
Pulling 3 terms from VFB...
[38]:
# Plot
navis.plot3d([nl, lh, al, ca])
Data type cannot be displayed: application/vnd.plotly.v1+json
Plotting graphs

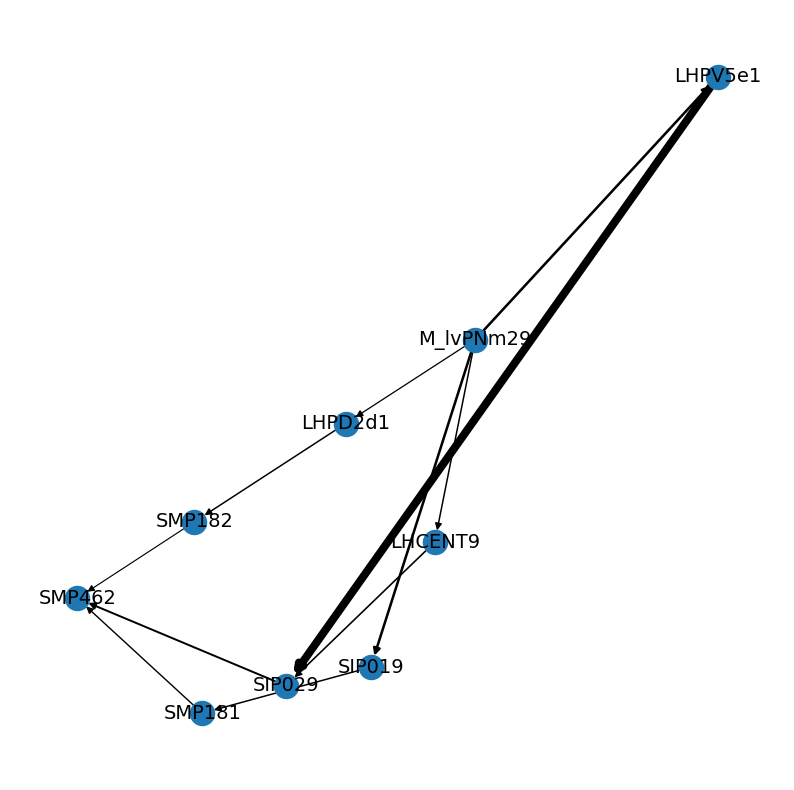

There are various ways of plotting static graphs. In theory Jupyter notebooks lend themselves to interactive graphs too but unfortunately DeepNote does not yet support the required libraries (e.g. ipywidgets). That being said: if you want to run this locally or on Google colab, check out ipycytoscape.
There are numerous options to do this but we will use networkx to plot a static graph:
[39]:
import networkx as nx
import numpy as np
# Initialize the graph
G = nx.DiGraph()
# Generate edges from the paths
edges = []
for p in paths.path.unique():
this_path = paths.loc[(paths.path == p)]
this_edges = list(zip(this_path.values[:-1], this_path.values[1:]))
for i in range(this_path.shape[0] - 1):
edges.append([this_path.bodyId.values[i], this_path.bodyId.values[i + 1], this_path.weight.values[i + 1]])
# Add the edges
G.add_weighted_edges_from(edges)
# Add some names to the nodes
nx.set_node_attributes(G, paths.set_index('bodyId')['type'].to_dict(), name='name')
[40]:
import matplotlib.pyplot as plt
# Draw using a simple force-directed layout
pos = nx.kamada_kawai_layout(G)
# We could draw everything in one step but this way we have more control over the plot
fig, ax = plt.subplots(figsize=(10, 10))
# Draw nodes
nx.draw_networkx_nodes(G, pos=pos, ax=ax)
# Draw edges
weights = np.array([e[2]['weight'] for e in G.edges(data=True)])
nx.draw_networkx_edges(G, pos=pos, width=(weights / 12).tolist())
# Add node labels
nx.draw_networkx_labels(G, pos=pos, labels=dict(G.nodes('name')), font_size=14)
# Turn axes of
ax.set_axis_off()
In general, I recommend exporting your graph to e.g. graphml and importing it into e.g. cytoscape if you want to explore an interactive network graph. see nx.write_gml
